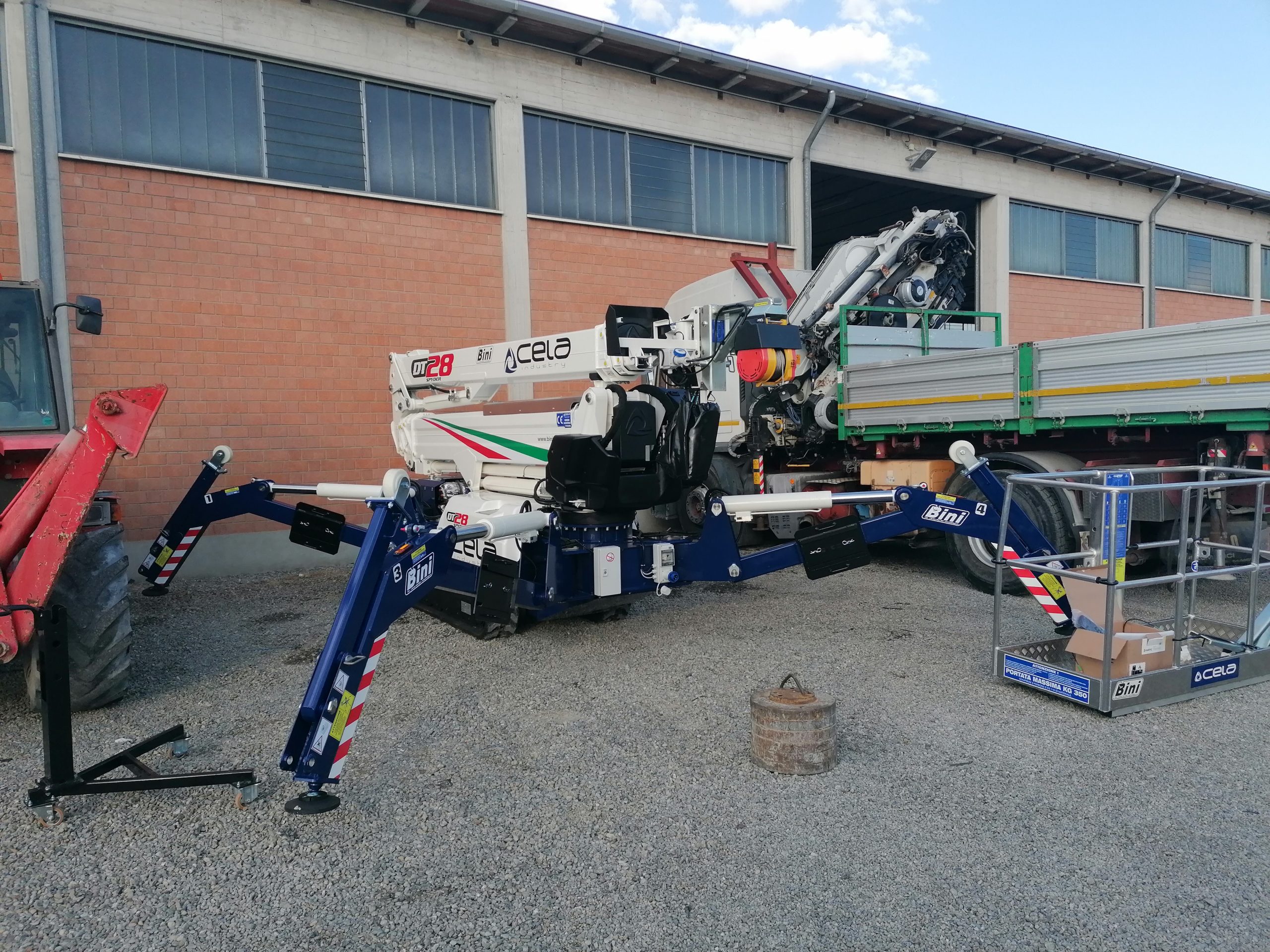

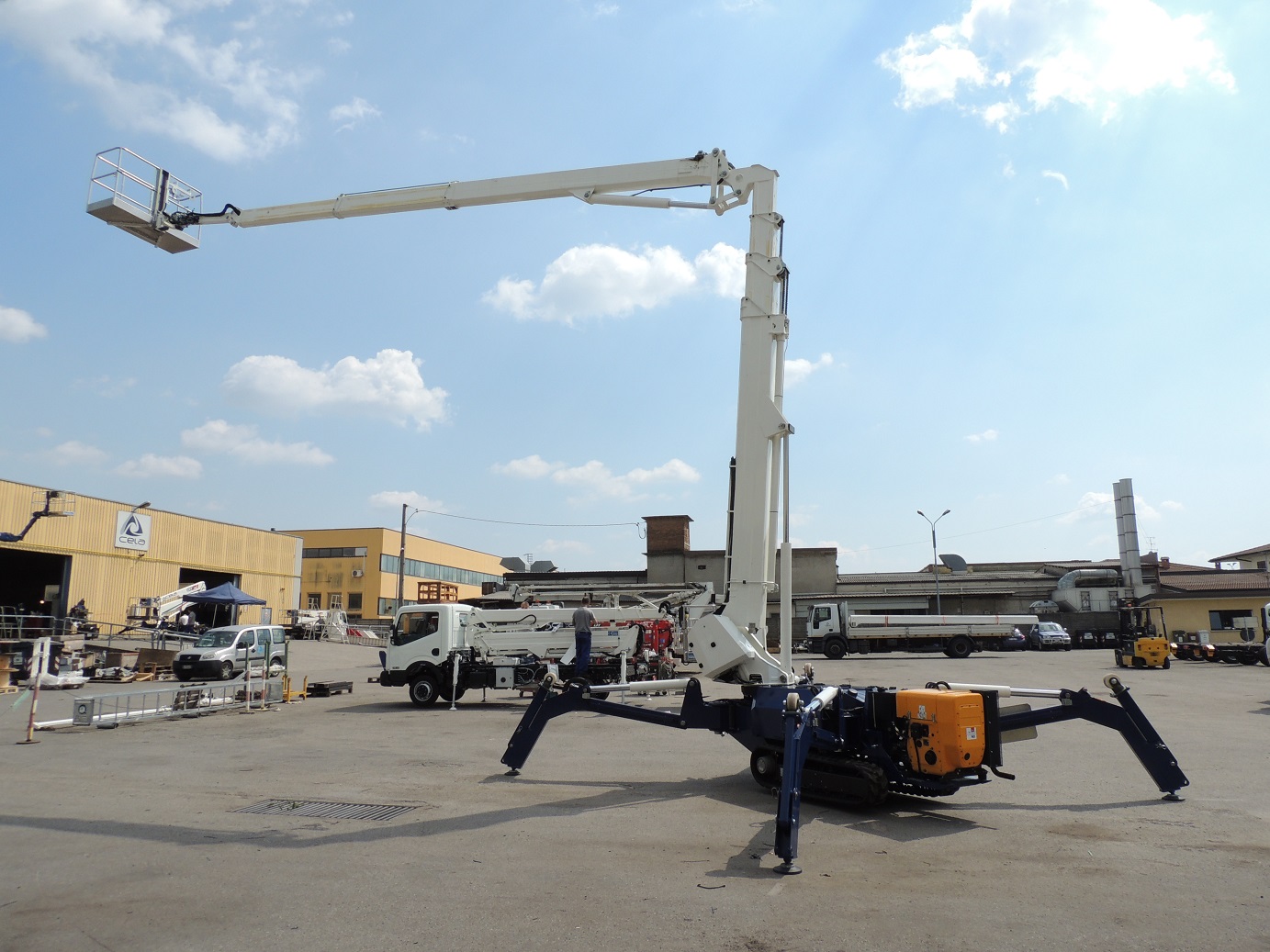

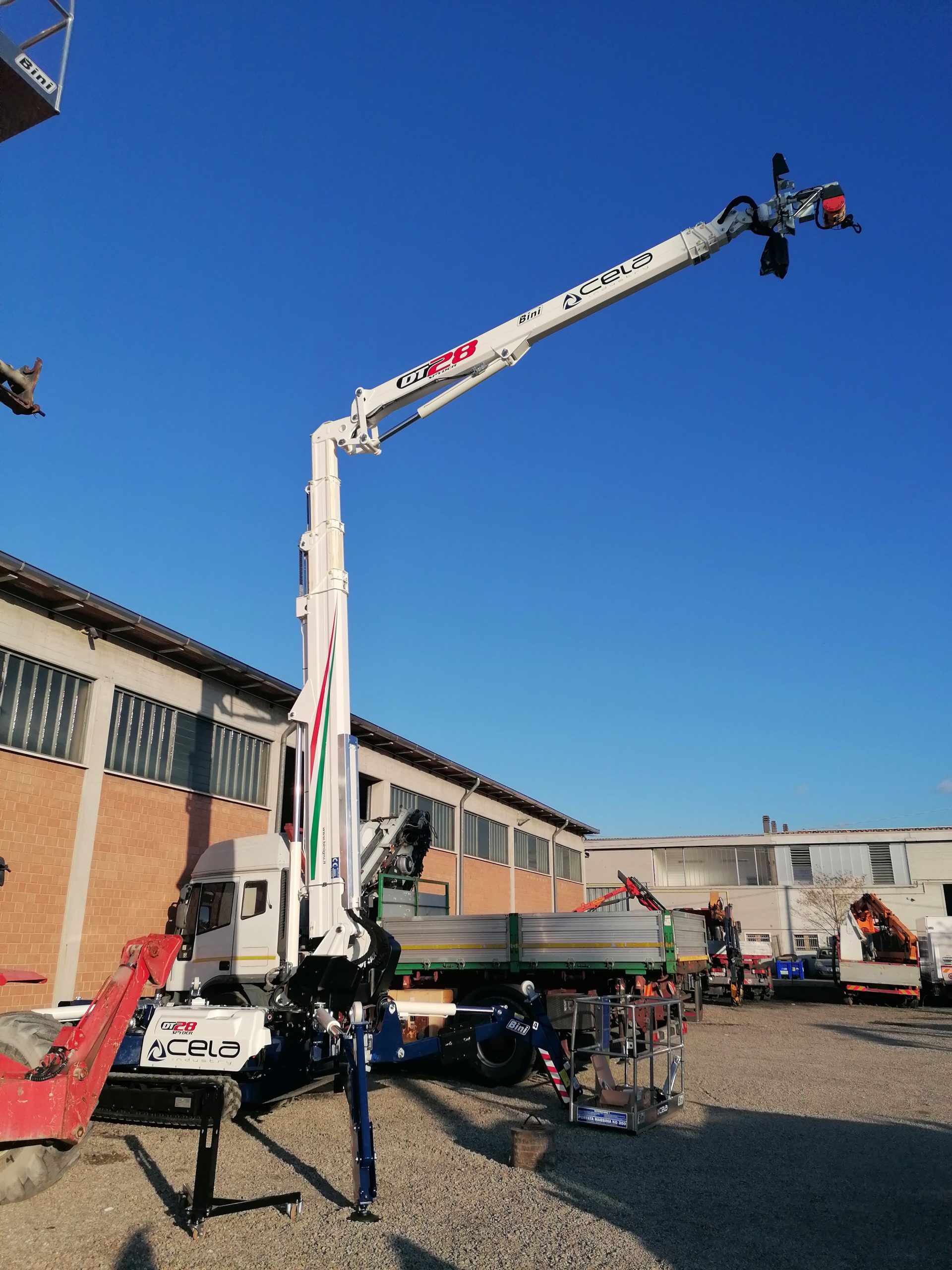

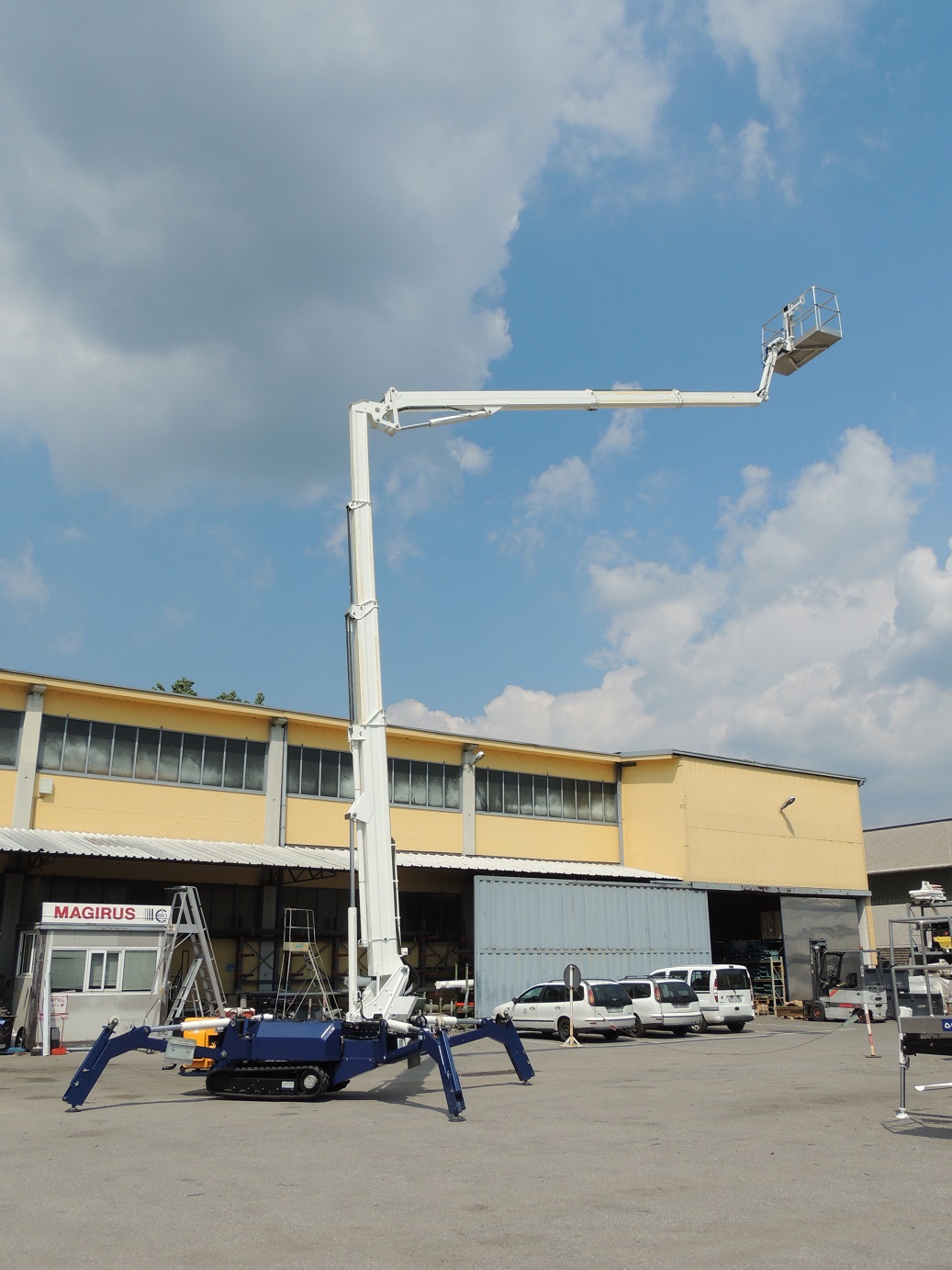

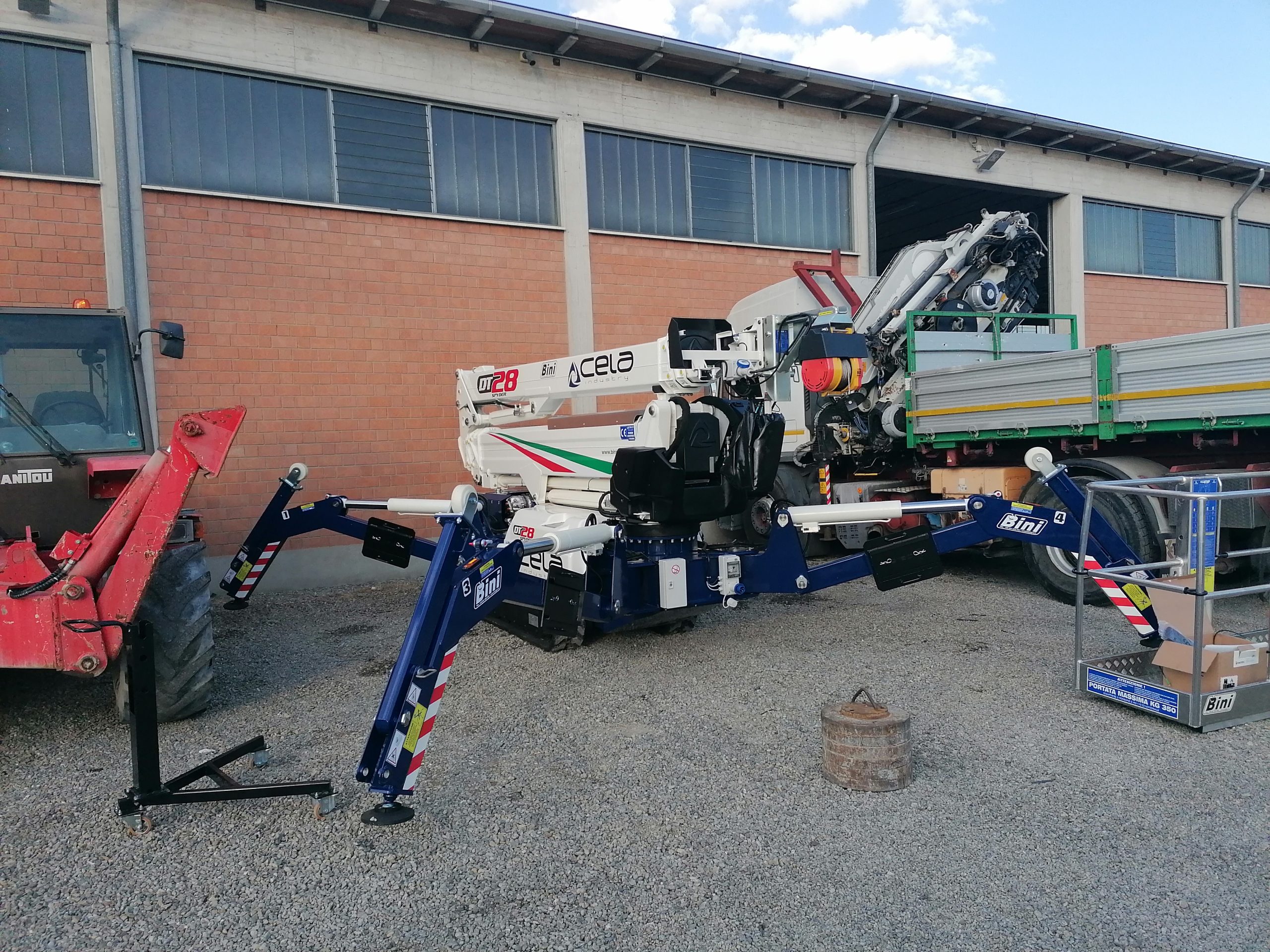

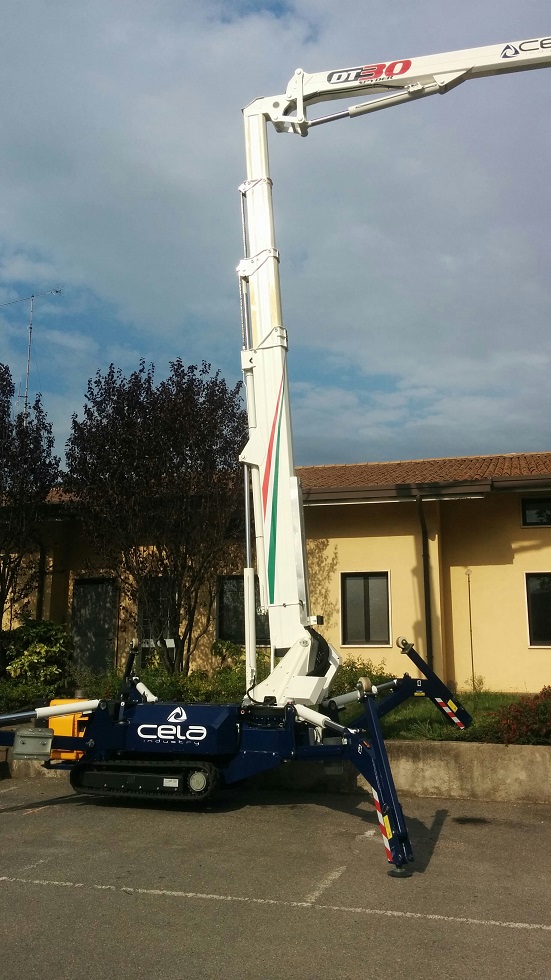

Telescopic self-propelled aerial work platform equipped with telescopic jib with several extensions, Maximum working height mt 28,20, Platform height mt 26,20, Maximum working outreach mt 14, Turret rotation 360° not continuous, Maximum capacity in the basket kg 350 complete with:

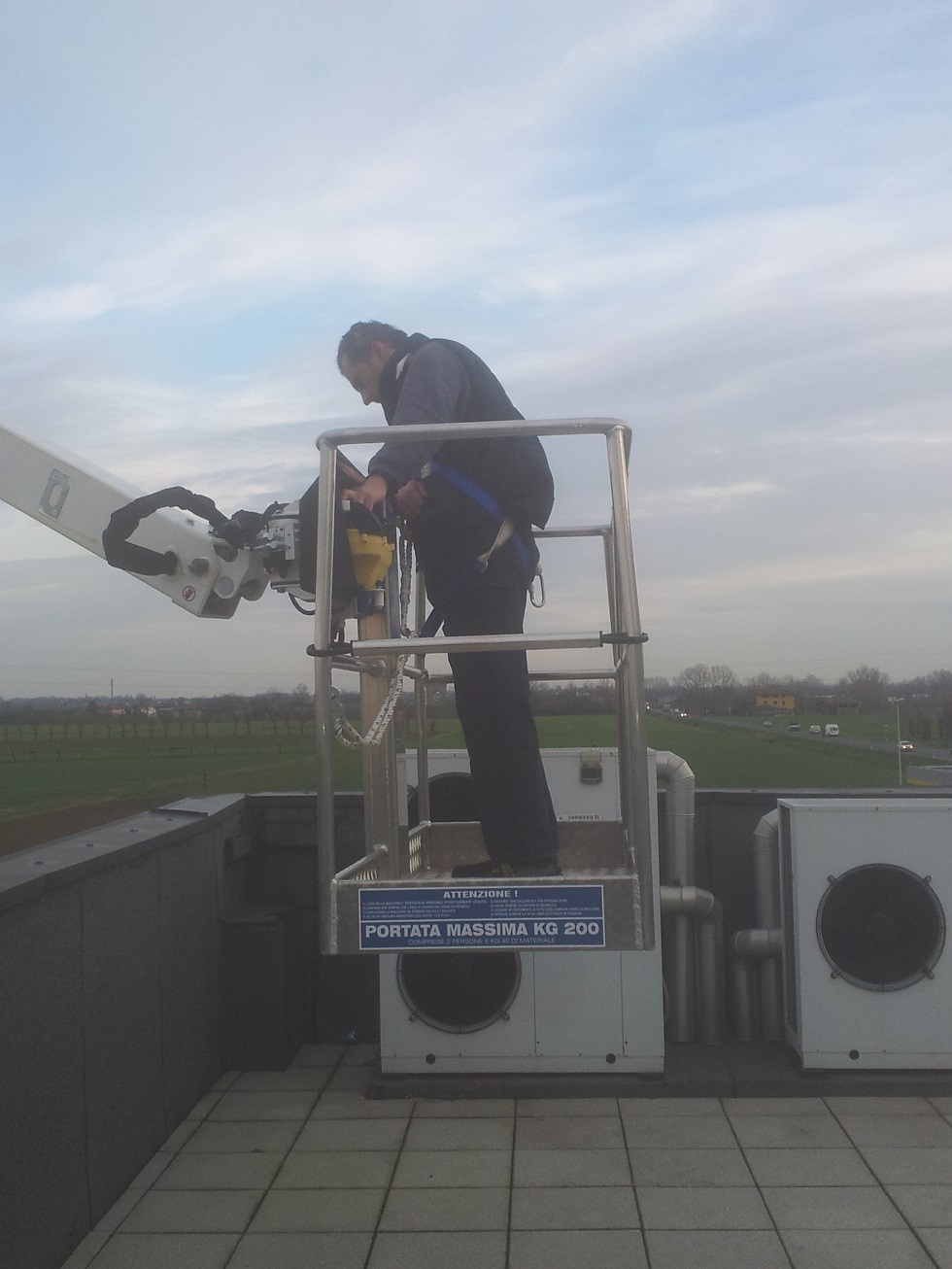

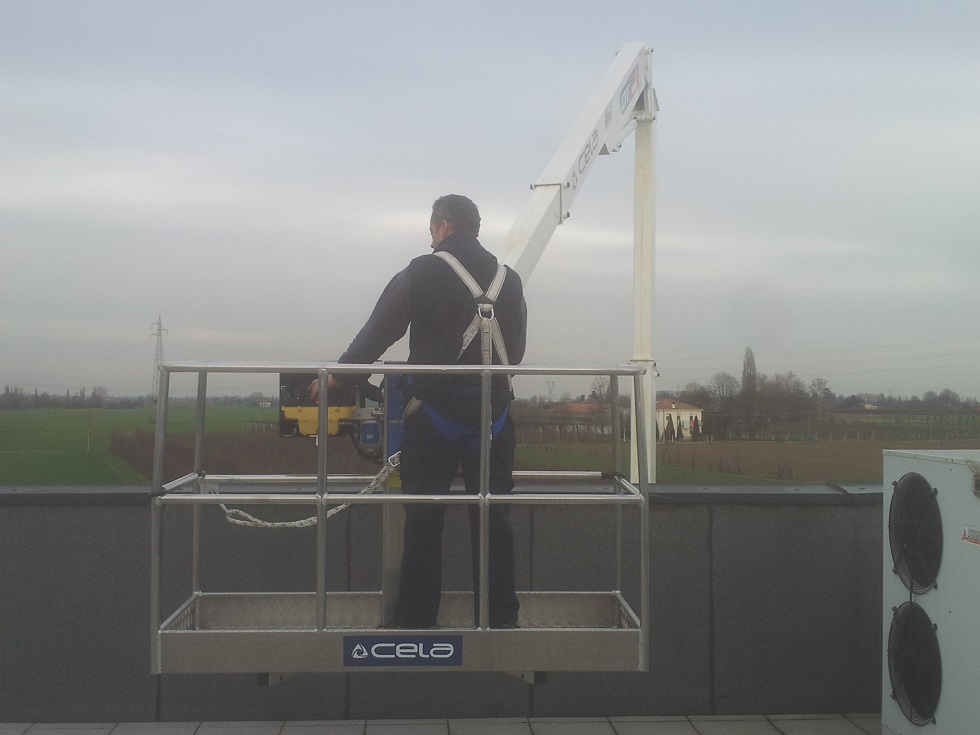

Self-loading carriage (H max. 130 cm), Quick release aluminum basket 1800 x 700 x h.1100 mm, Basket with maximum load capacity of 350 kg, Motor start/stop control from basket.

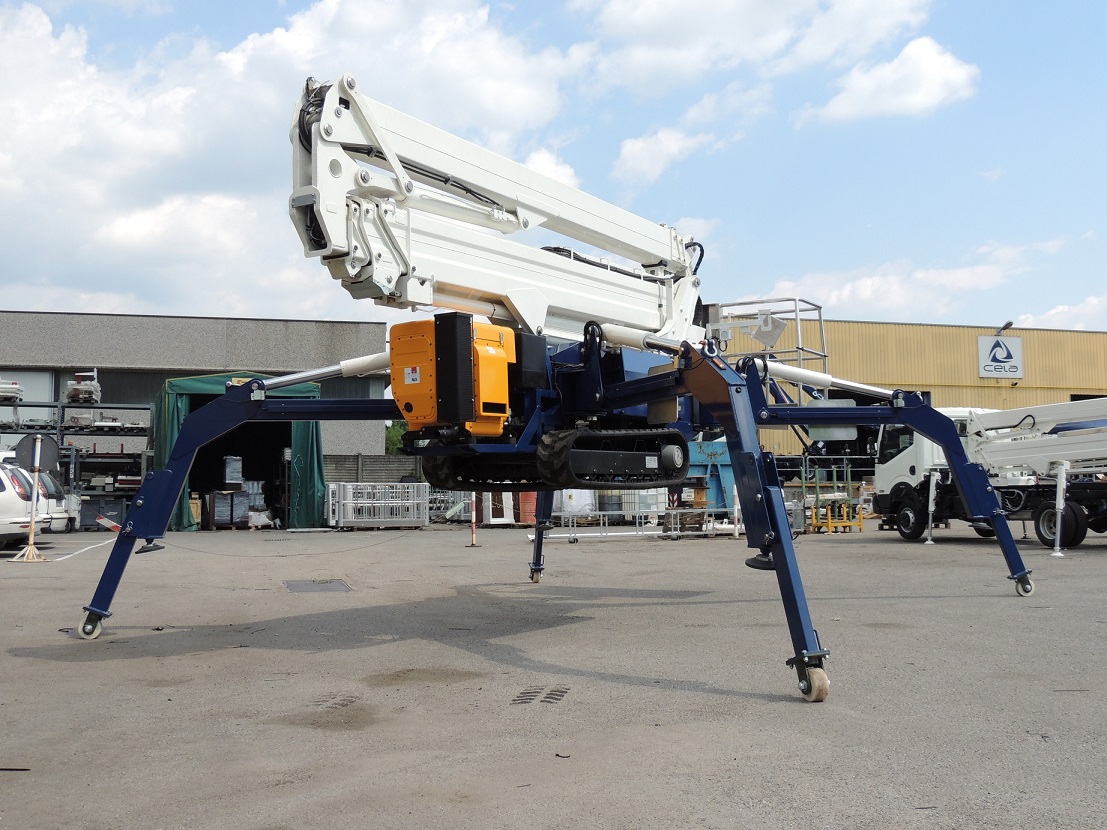

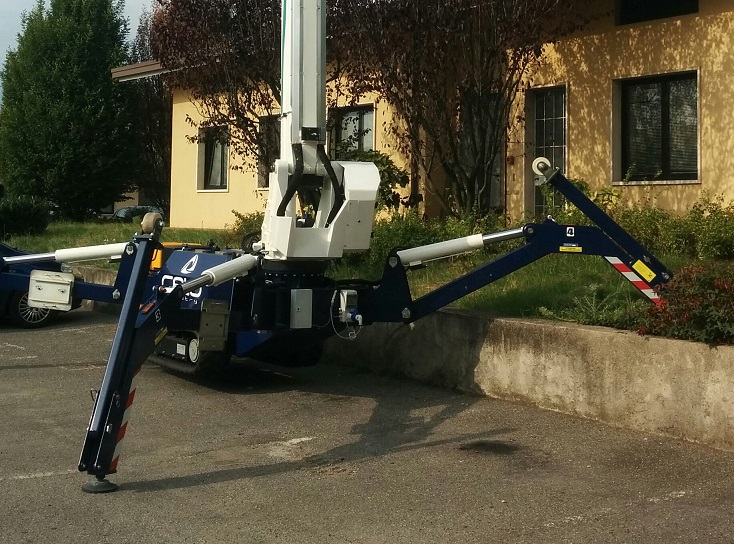

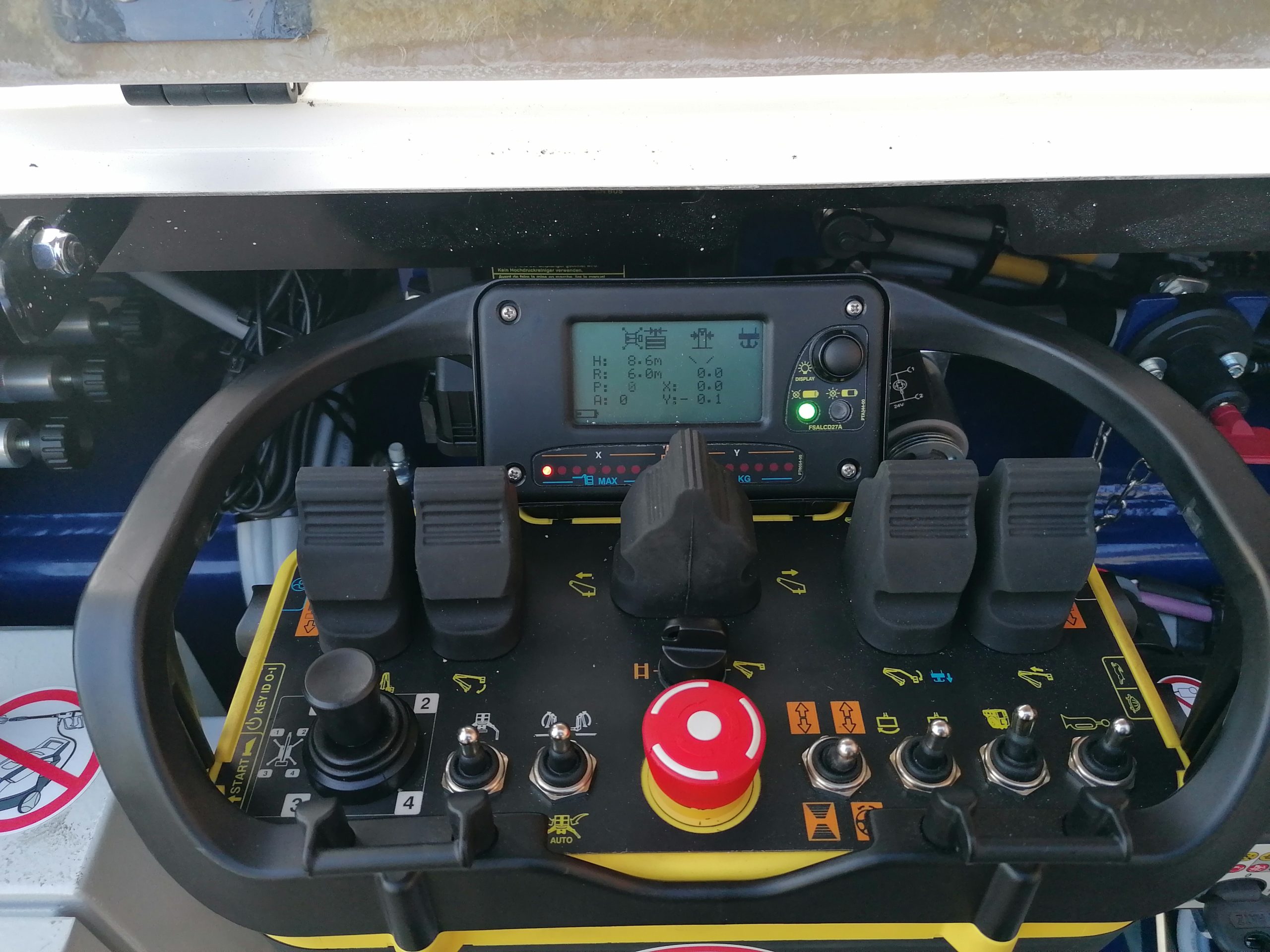

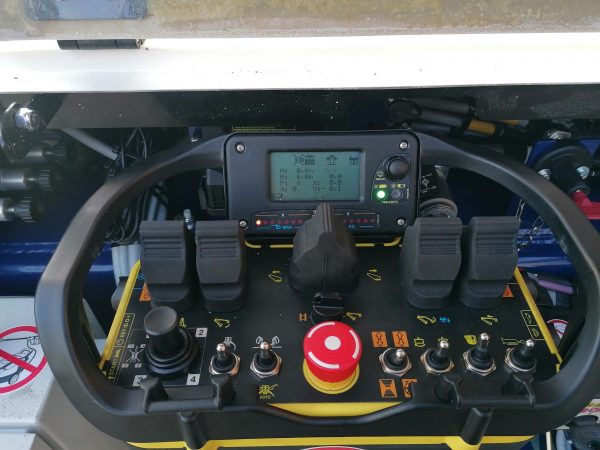

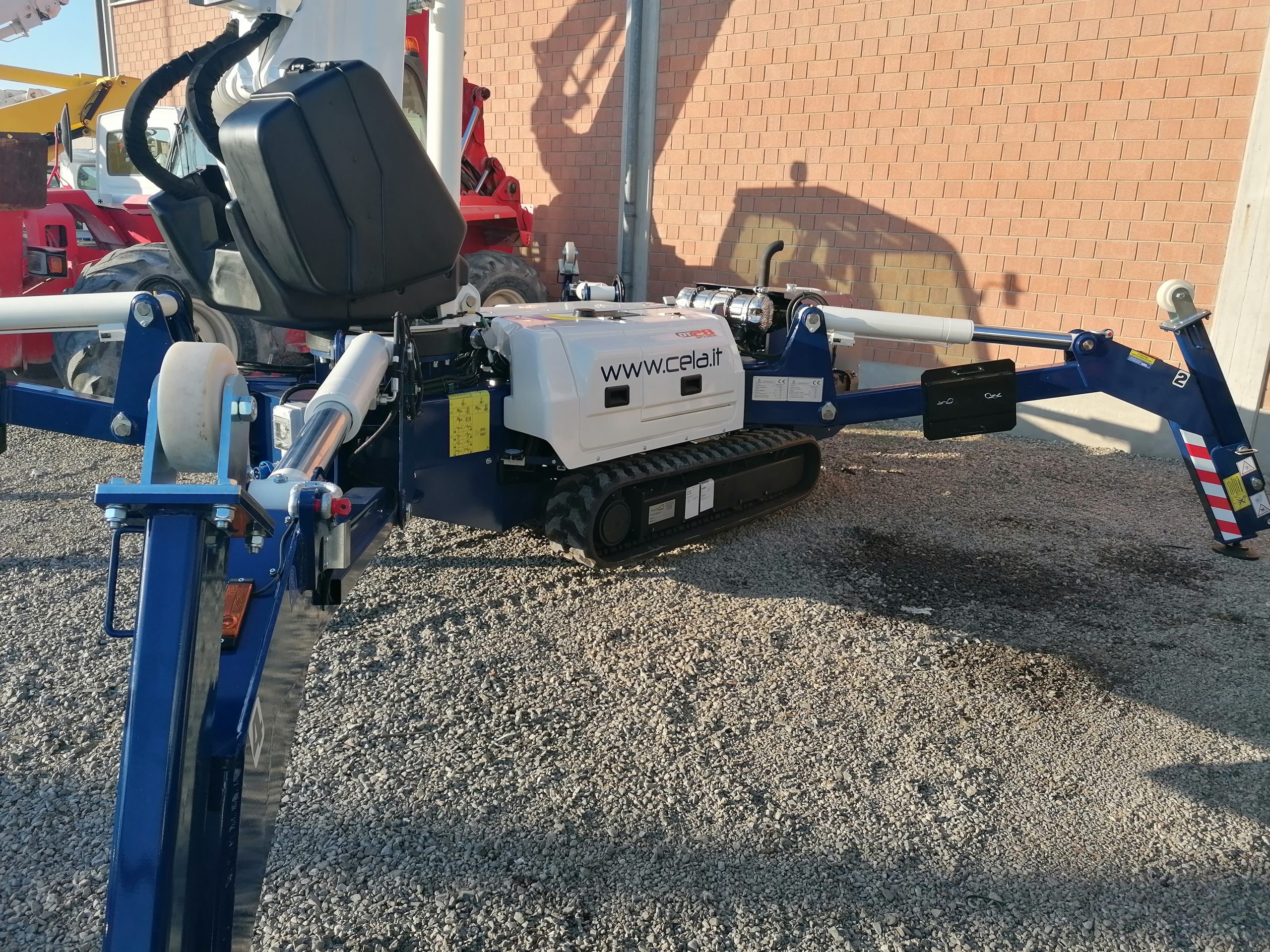

Basket control by buzzer, Proportional electro-hydraulic controls electronically controlled via can-bus, 230V electric connection in the basket, Electric hour counter, Automatic stabilization device, 230V/50Hz, single-phase electric pump controlled by inverter with battery charger, Differentiated filtering hydraulic system with high-efficiency filters, Outrigger lights on stabilizers, Twin-cylinder diesel engine type Hatz, N. 4 steel ground support plates, Manual emergency pump, Radio control, Basket rotation ±90°,Turret rotation 365°,Pivot point at 16 meters, Multi-axle system for visual stabilization control.
Remote assistance via new Cela Remote Service System CRSS, Flanged block valves on cylinders Suitable documentation for Certification for landing at height.
- 2400 mm aluminum nacelle replacing the 1800 mm.
- White non-marking tracks
- Air/water inlet in nacelle
- Additional 700 mm aluminum carry cage (For pruning work)

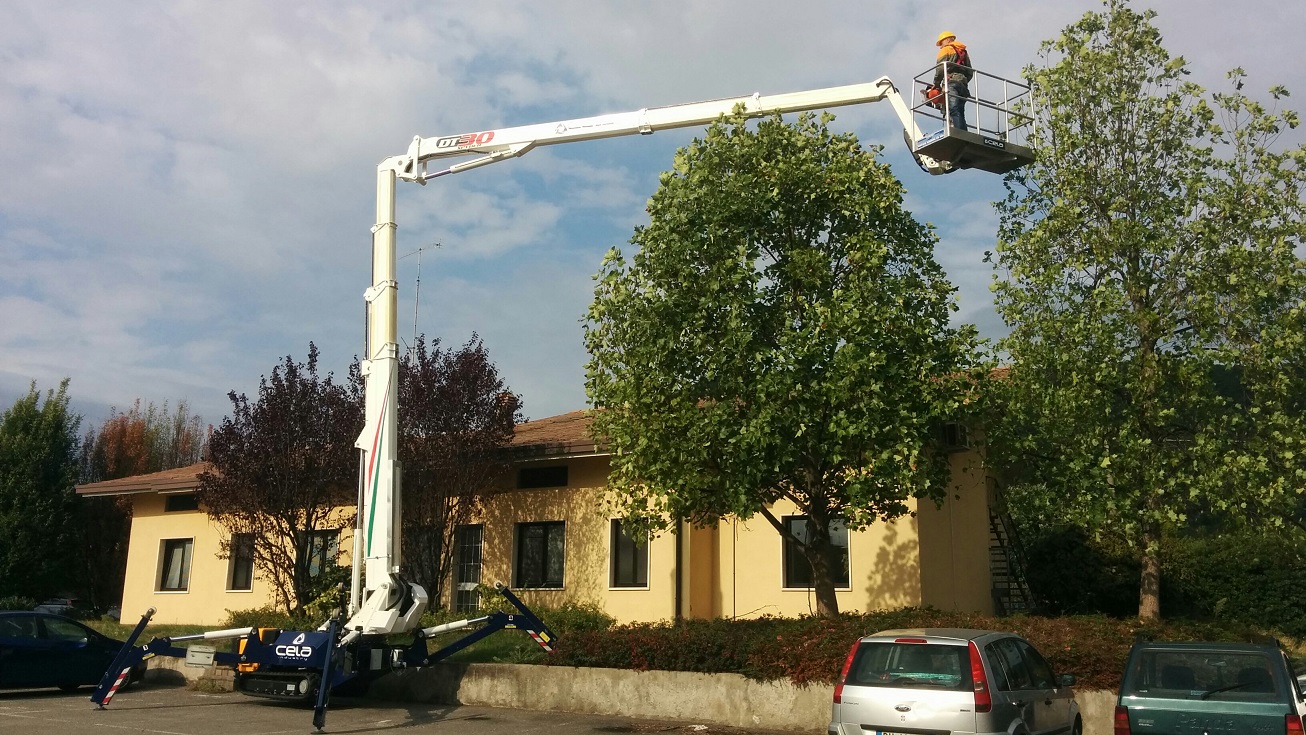

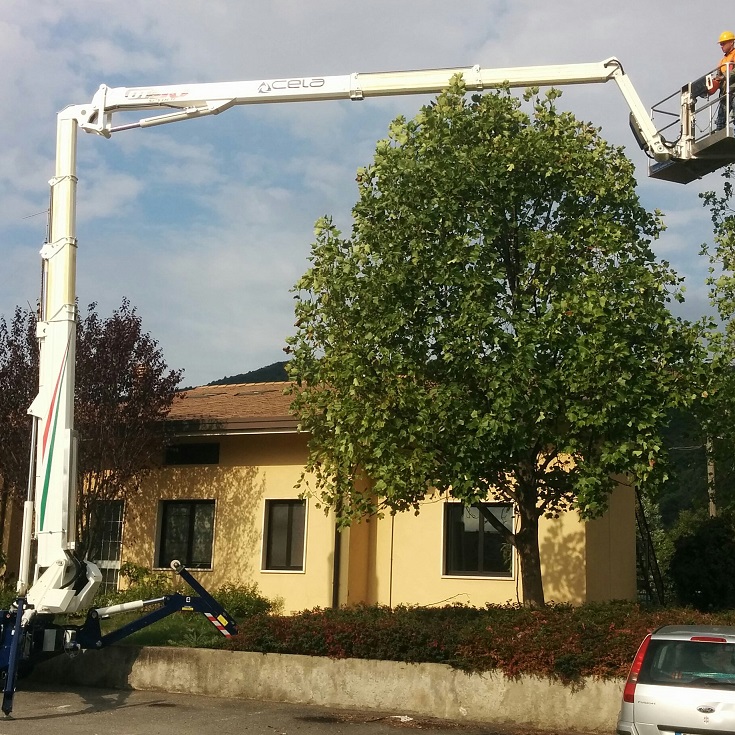

- Brushes on the main arms (For pruning work)

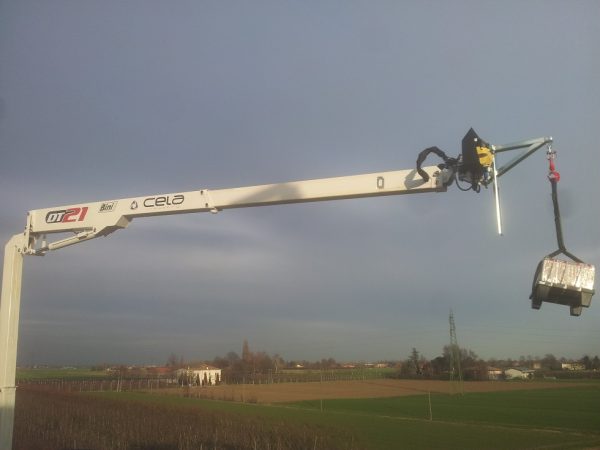

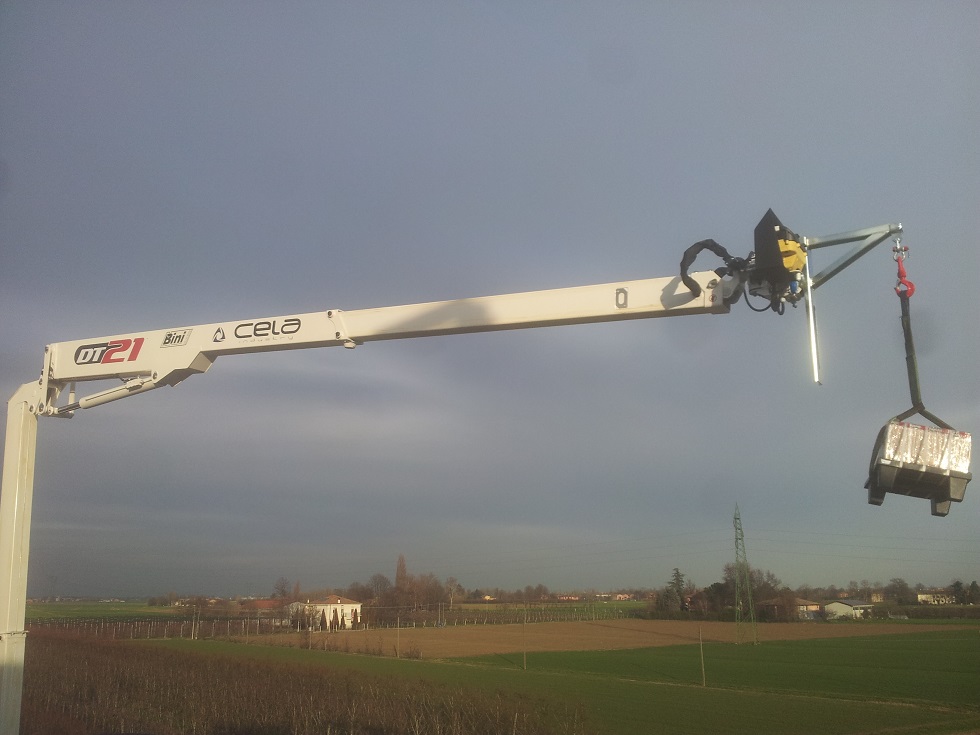

- Electric winch with differentiated capacities (see working area)
- Approved platform for loading and unloading materials with folding tailgates
- Fixed intercom system
