Description

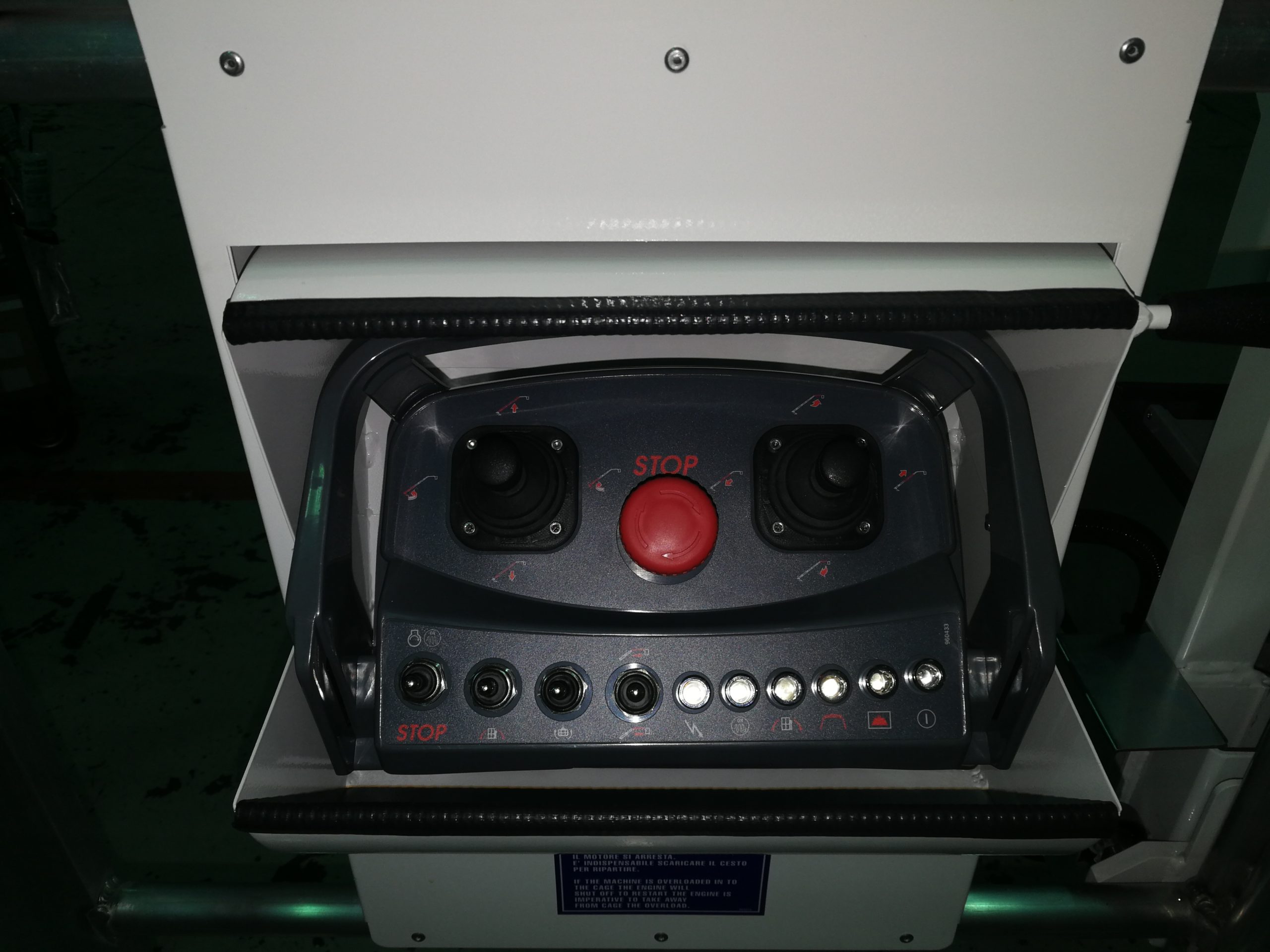

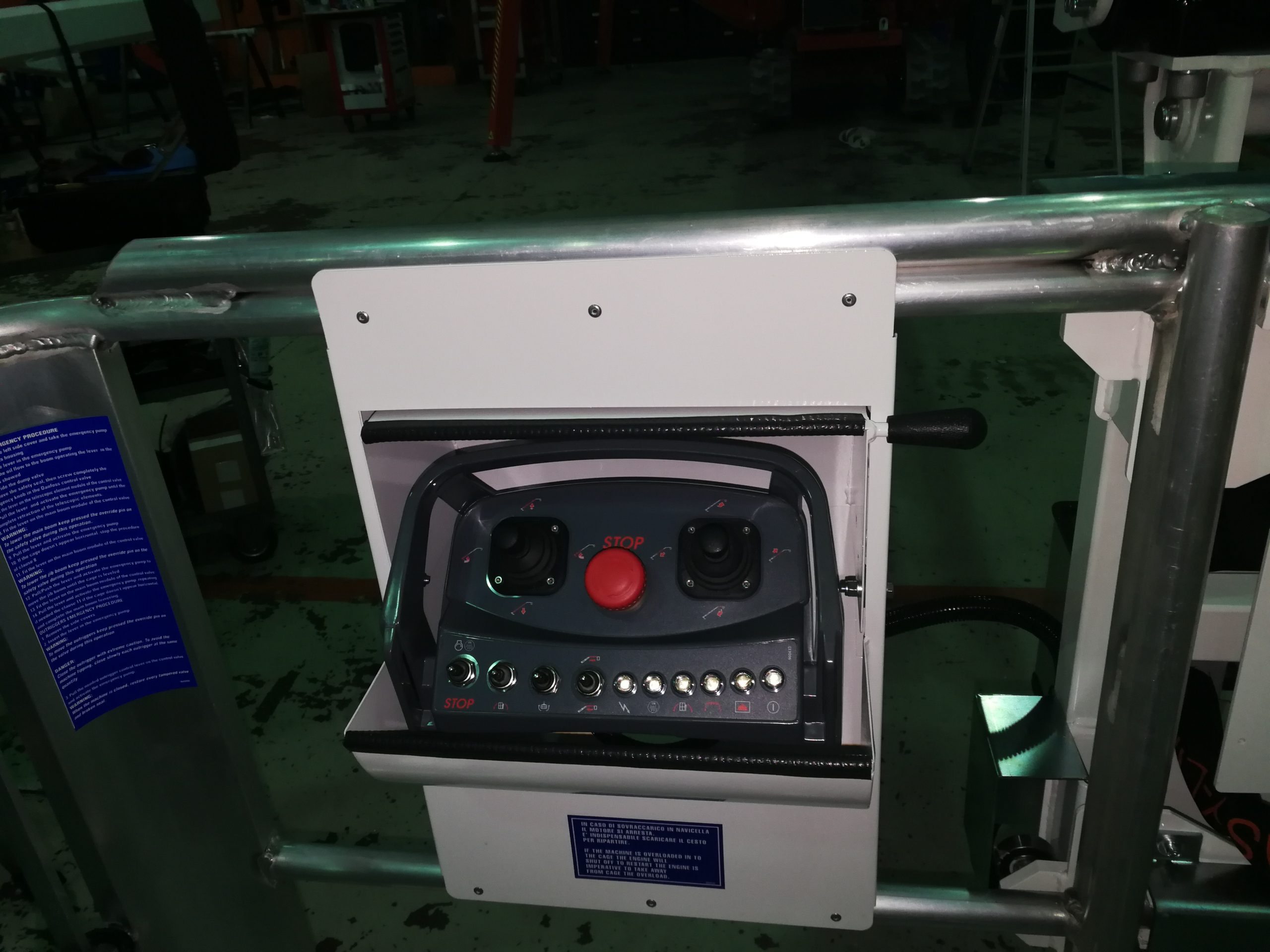

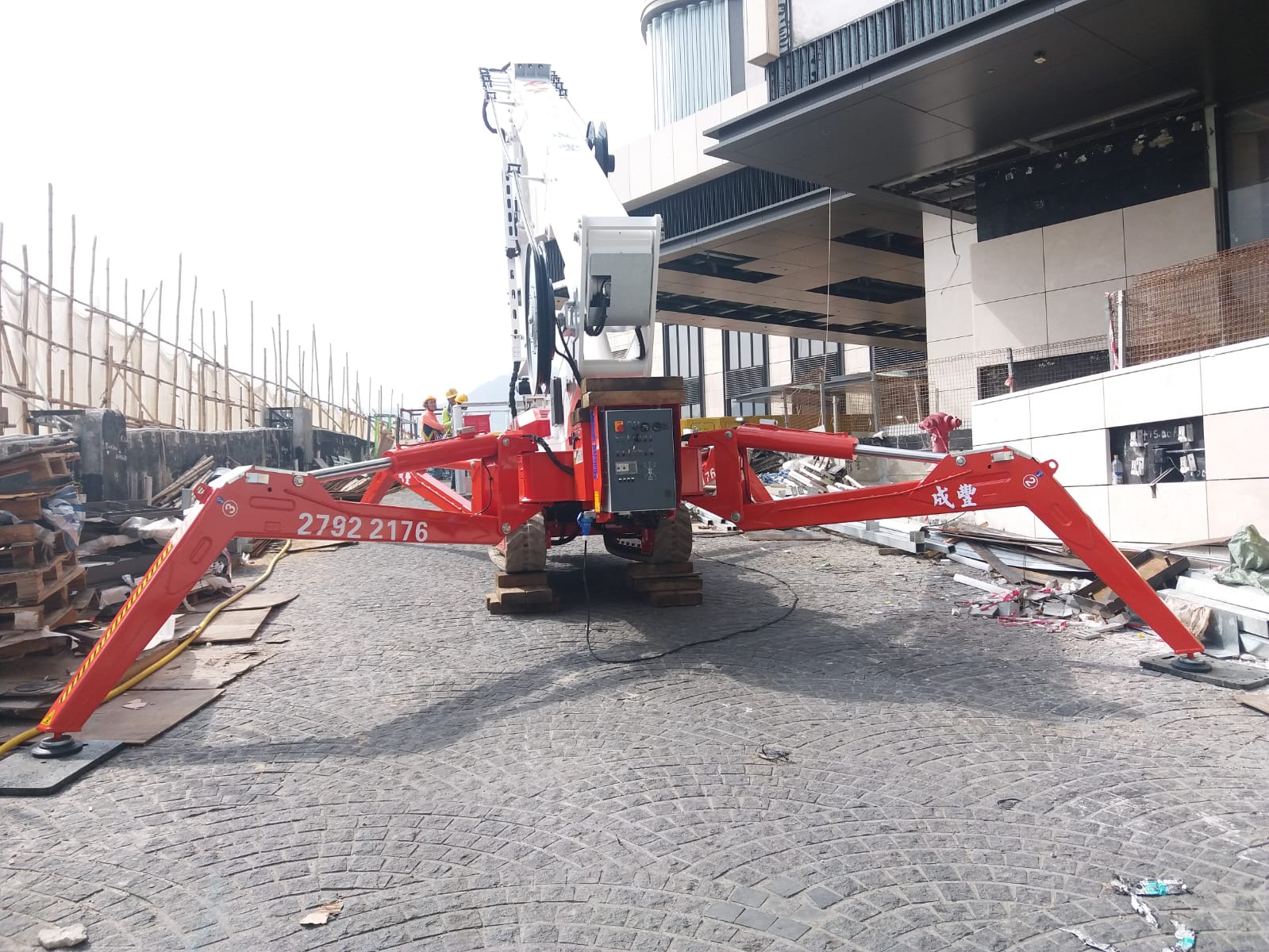

Maximum working height: 30.00 m., Maximum working outreach 14.50 m. with 120 kg. Turret rotation: 360° Aluminum basket 2000x800x1100 mm with capacity 200 kg (2 operators). Basket rotation: 90°+90°, Diesel engine: Hatz 25.7 kW, Traveling grade: 30%, Platform total weight: 6000 kg, Outriggers dimensions at ground level: 3900×3800 – 4400×3200 – 3200×4400 mm. Machine dimensions at rest: length 6700 mm – width 1400 mm – height 2000 mm. Danfoss electro-hydraulic controls, Radio remote control, Locking valves on cylinders, Acoustic signal during travel, Engine start/stop control from basket, Extendable outriggers to facilitate loading onto truck, Hand pump for emergency lowering, Hooks for safety belts on basket, Reach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water outlet, 220 V electric outlet, Standard painting, CE certification, Operation and maintenance manual Available in bi-powered version (Diesel/Lithium-ion battery)

AVAILABLE OPTIONALS

  • Self-leveling stabilizers
  • Interphone
  • Non-marking tracks
  • Working beacon on the basket
  • Inclinometer with acoustic alarm
  • No. 4 stabilizer plates 600x400x30 mm
  • Hydraulic winch (lifting capacity 500 kg)
  • 380 V electric motor

WATCH THE VIDEOS

Brand

Easy Lift
