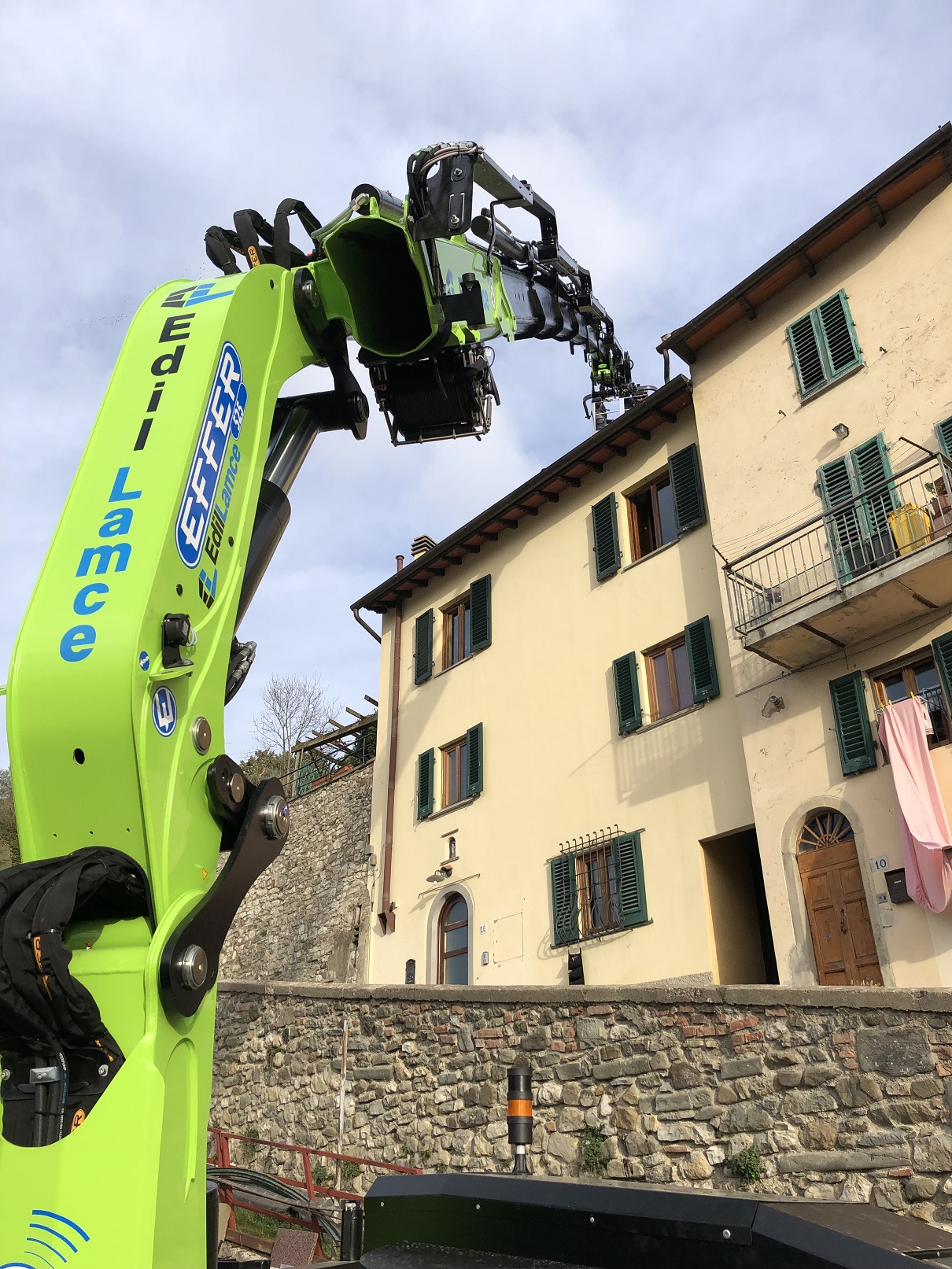

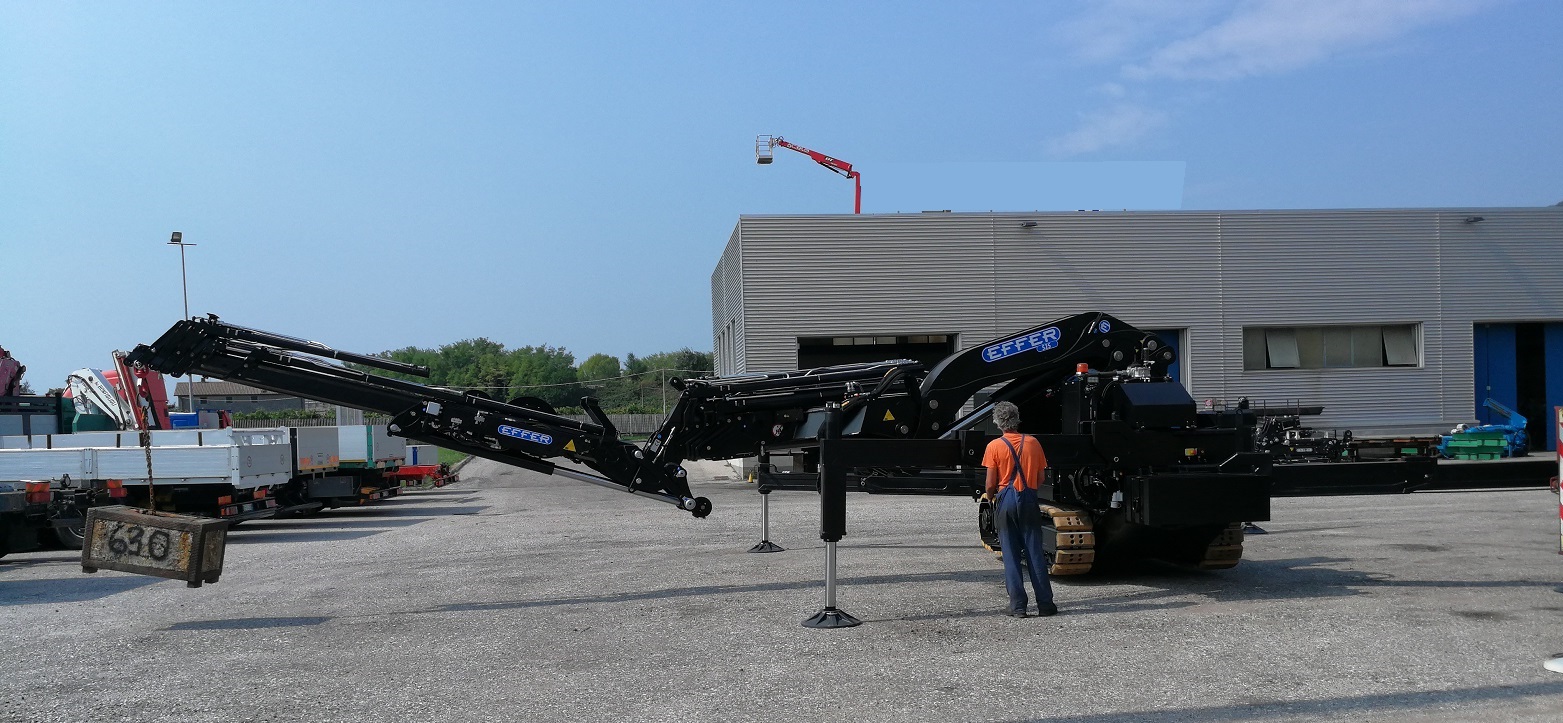

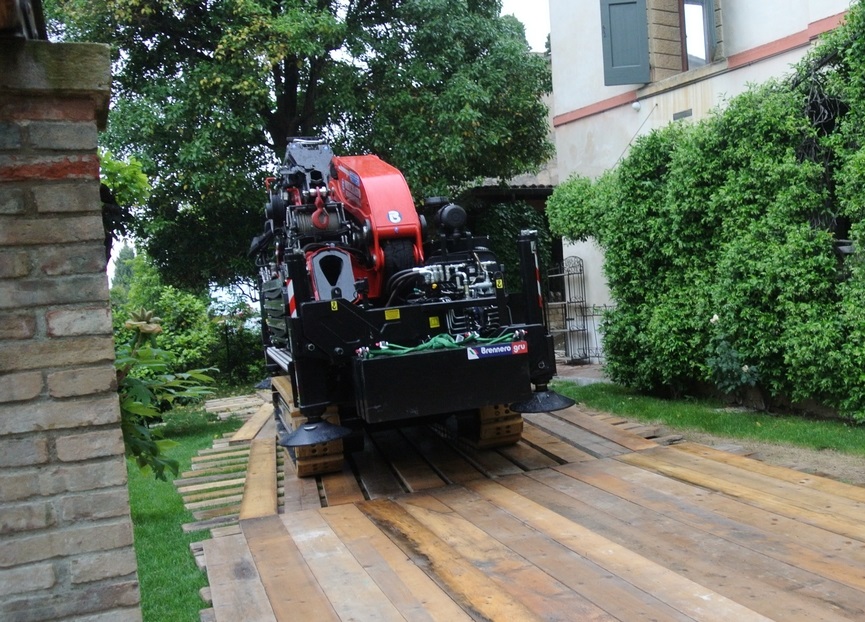

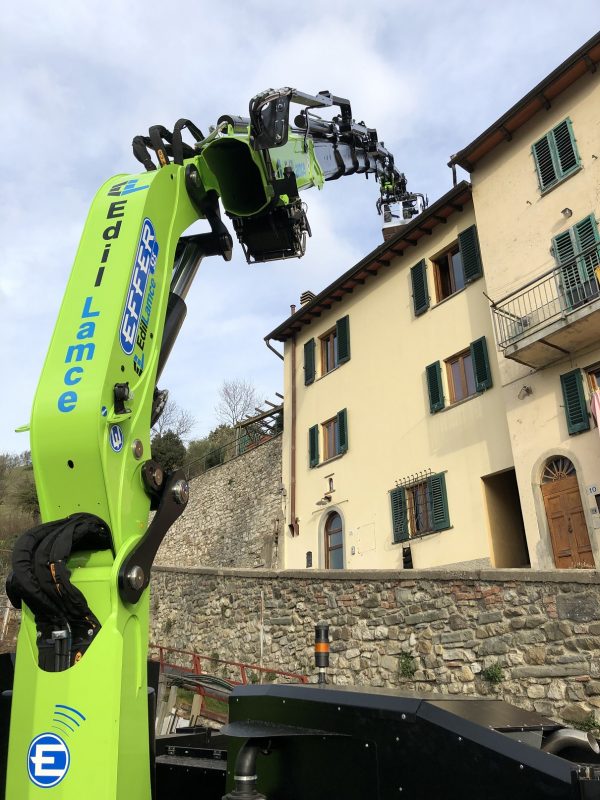

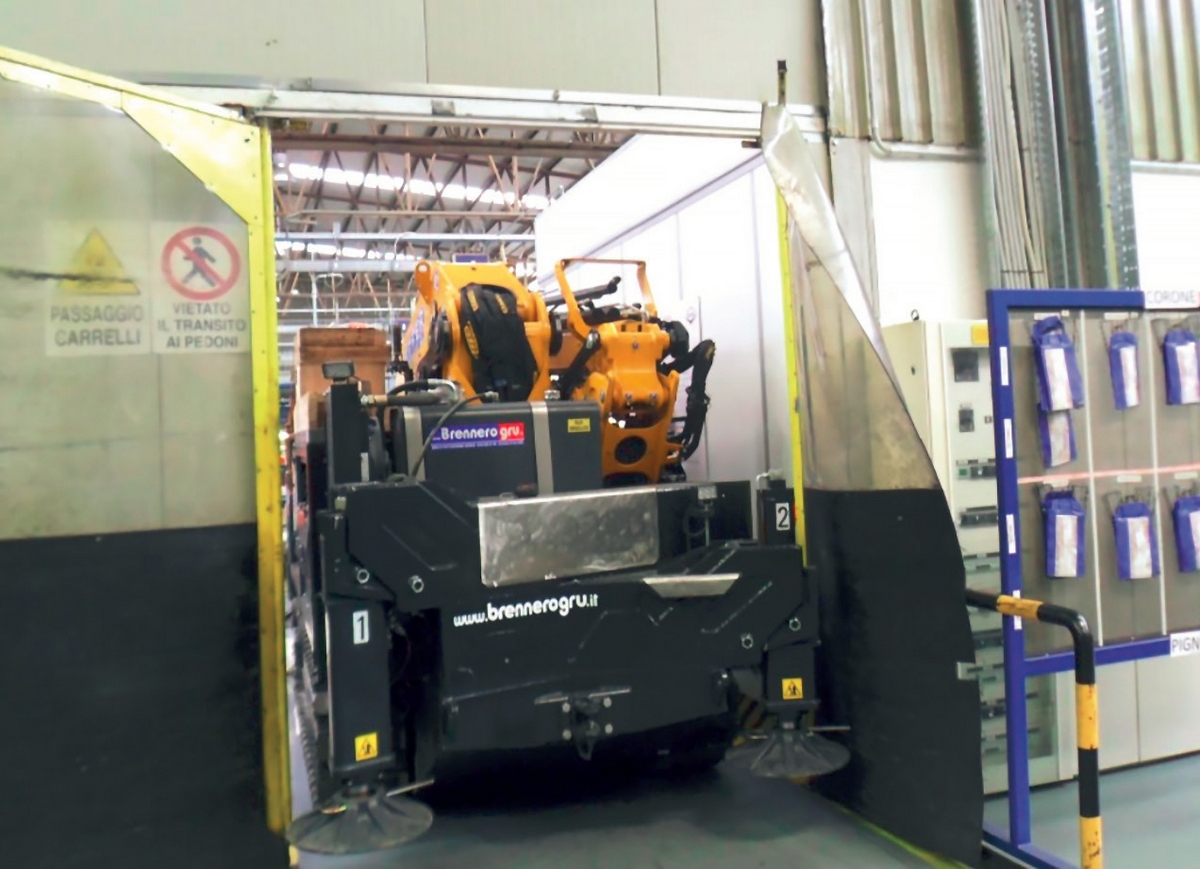

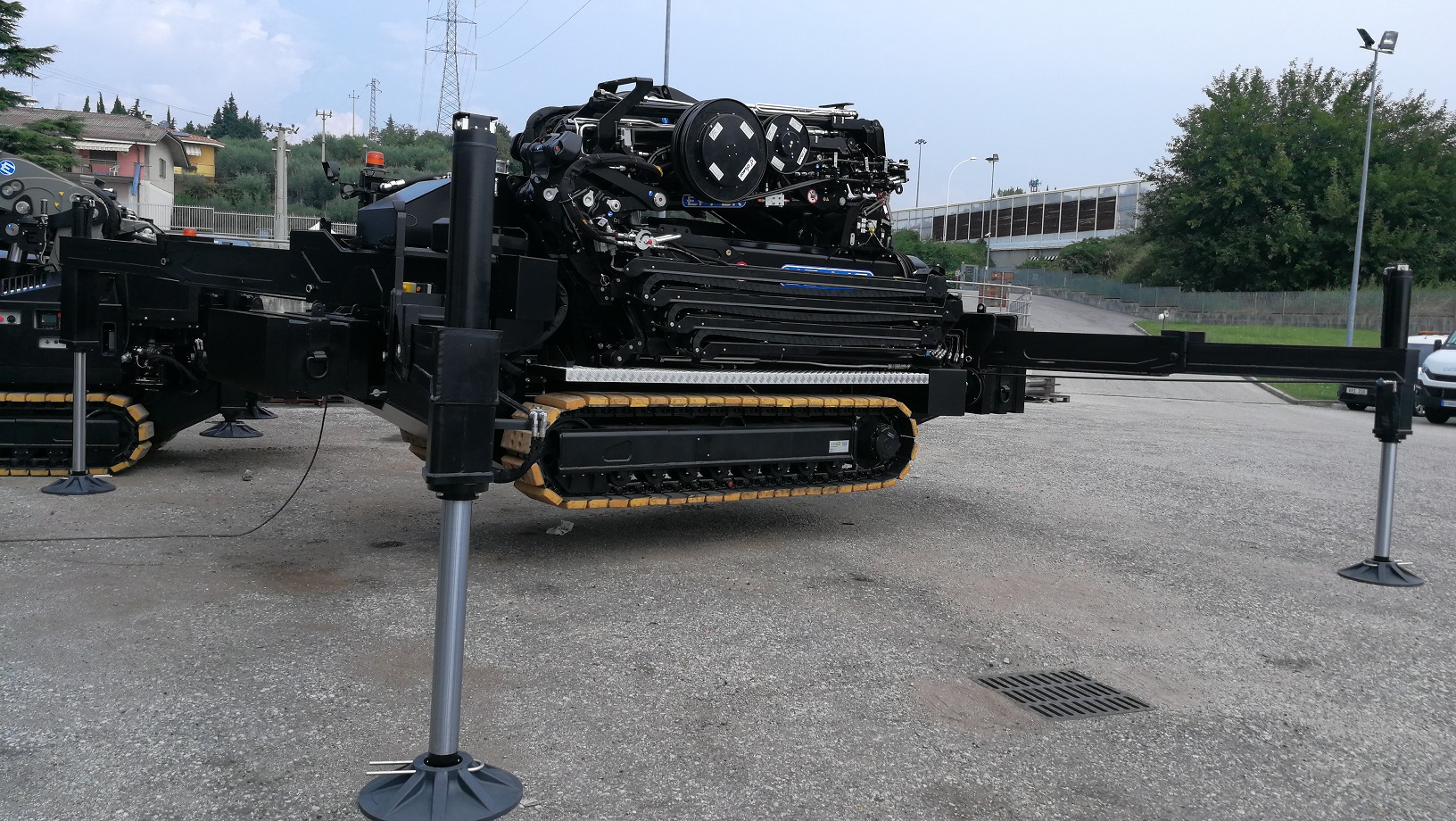

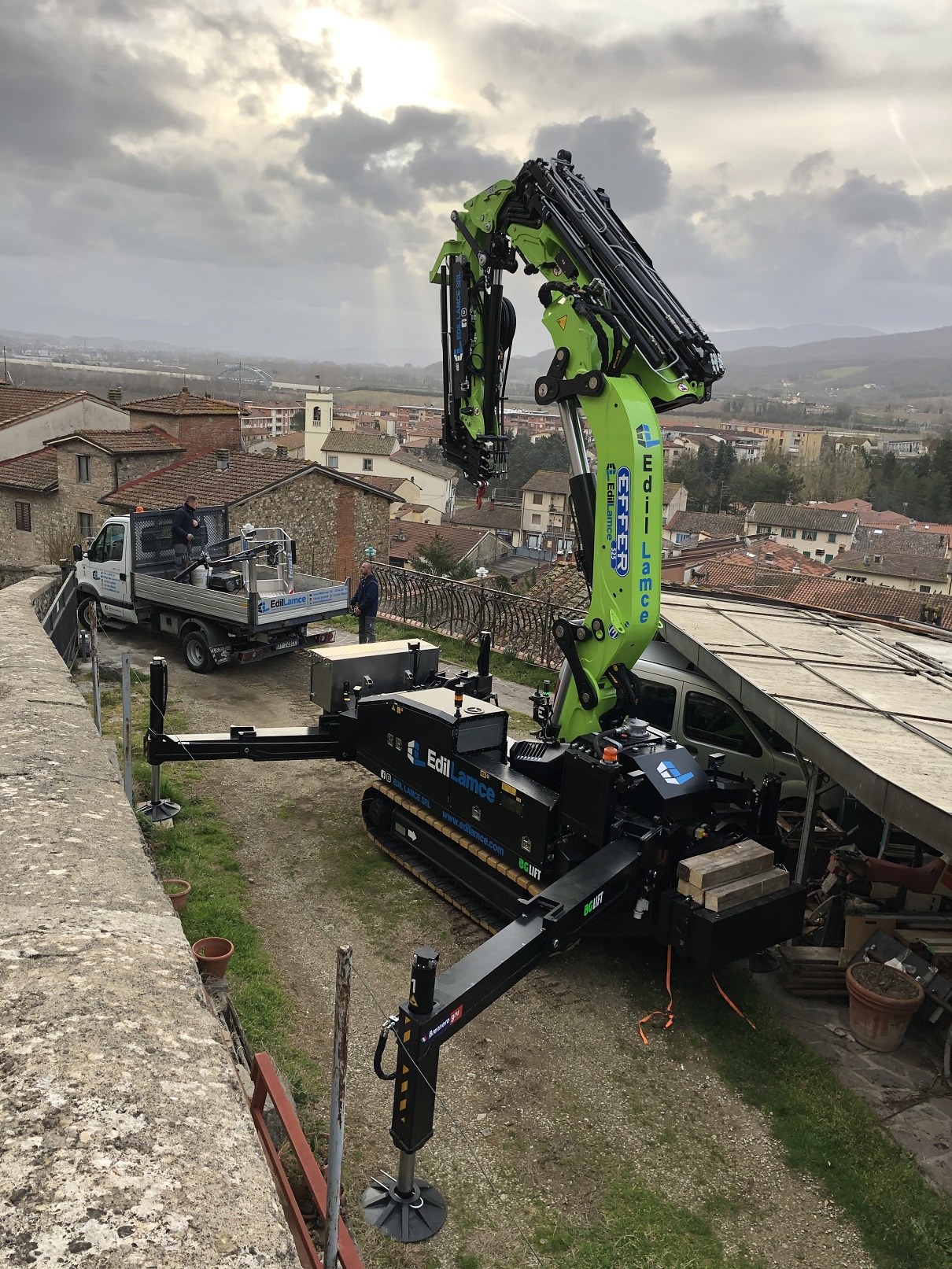

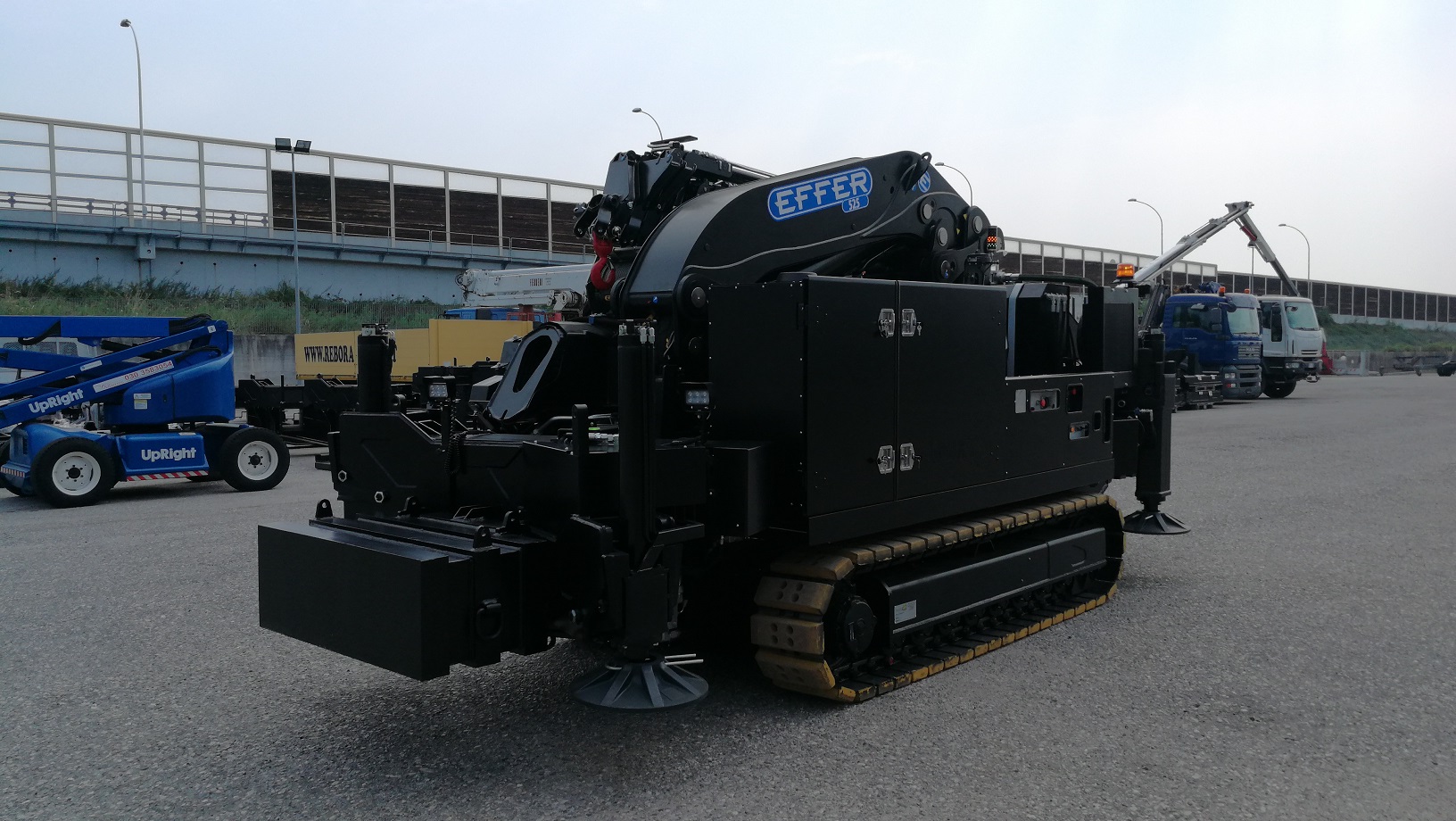

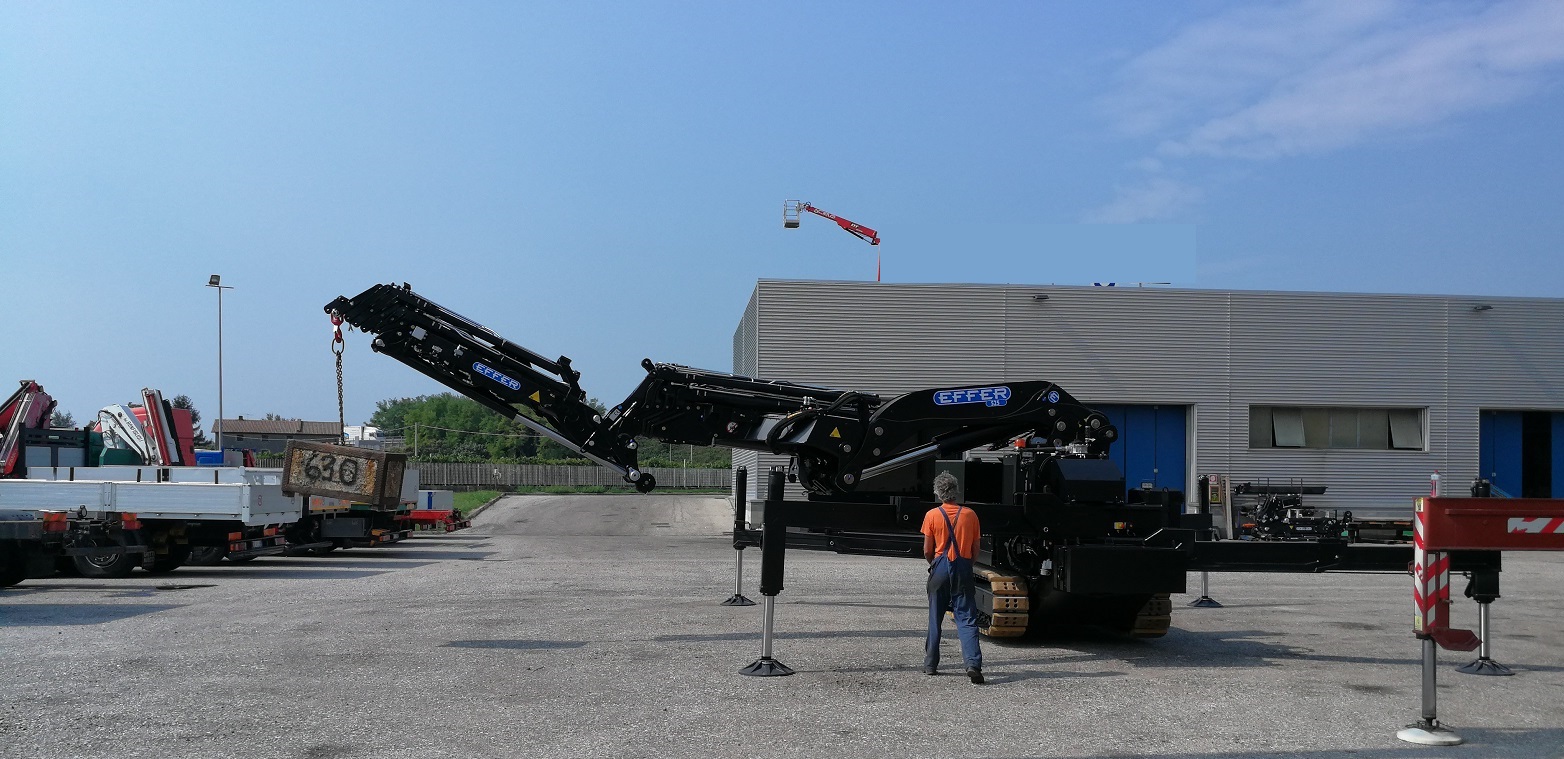

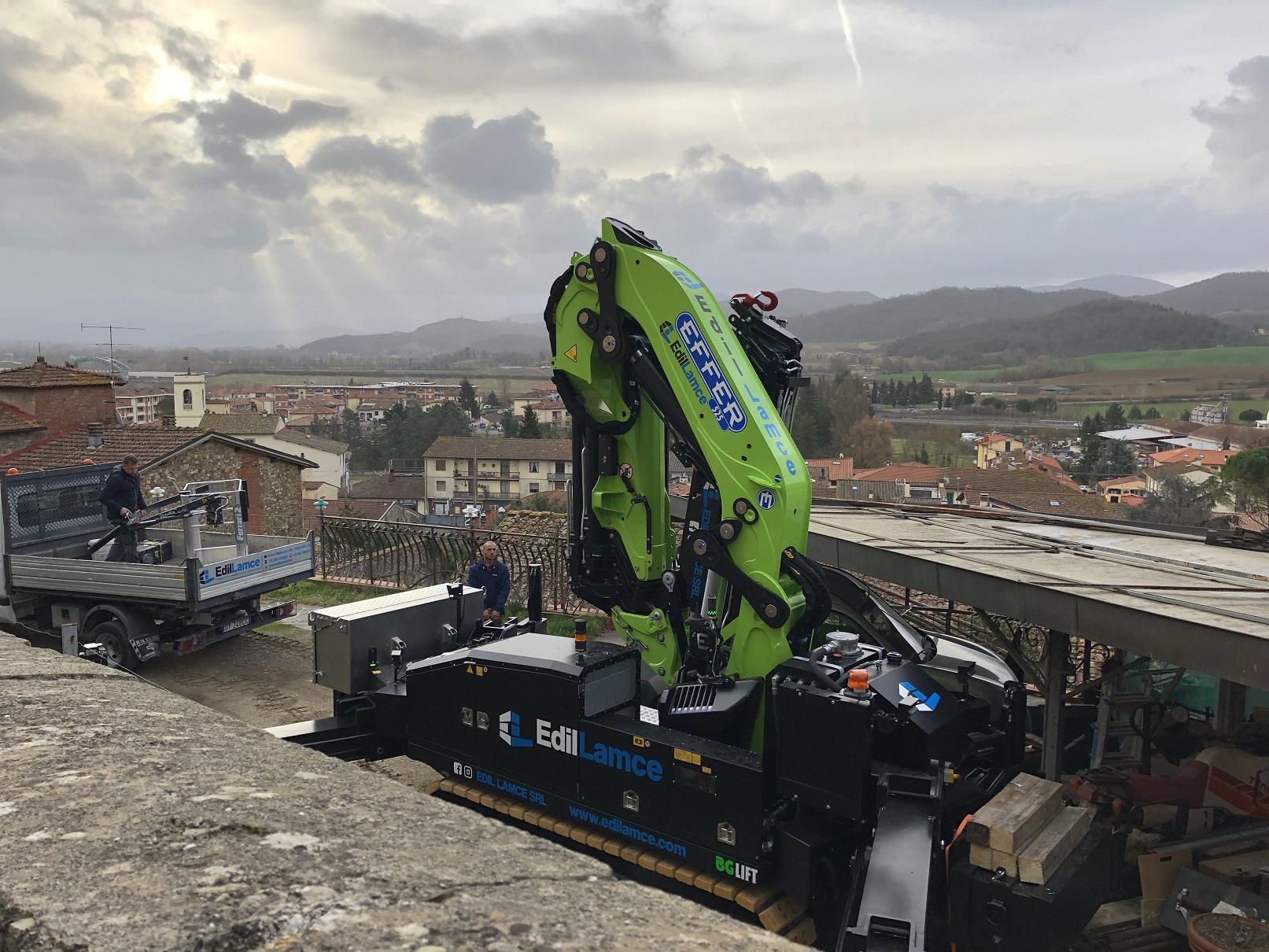

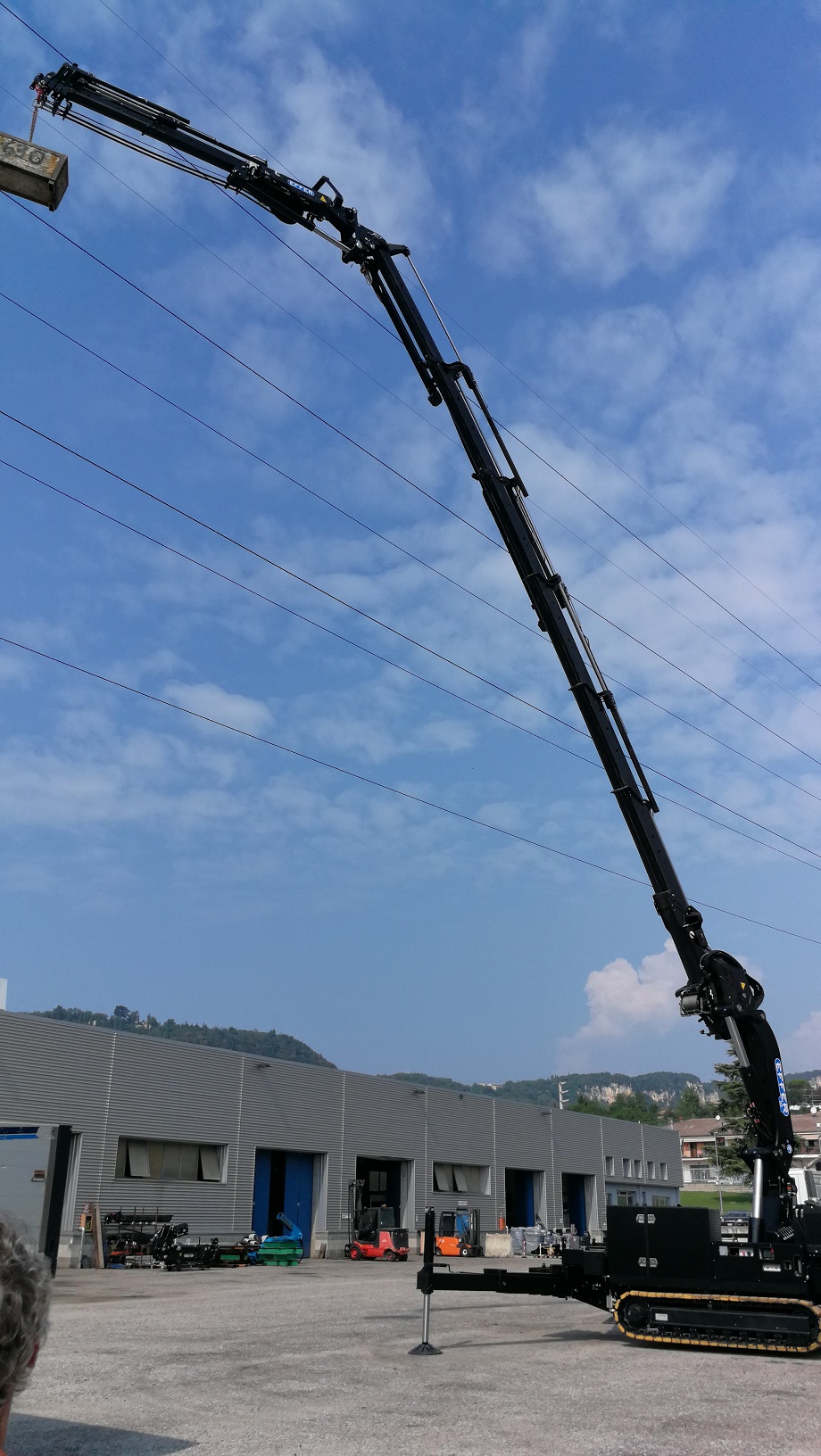

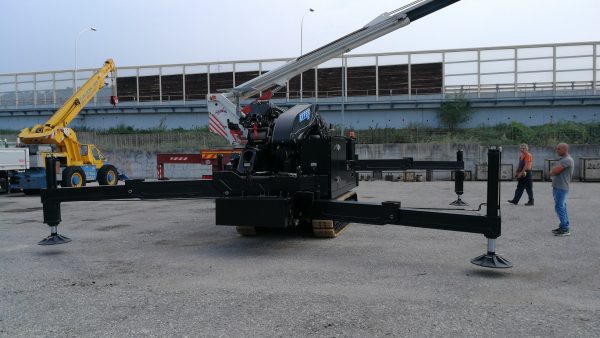

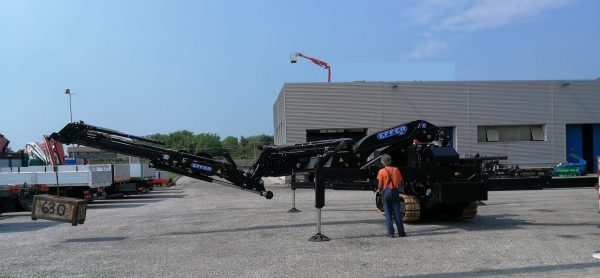

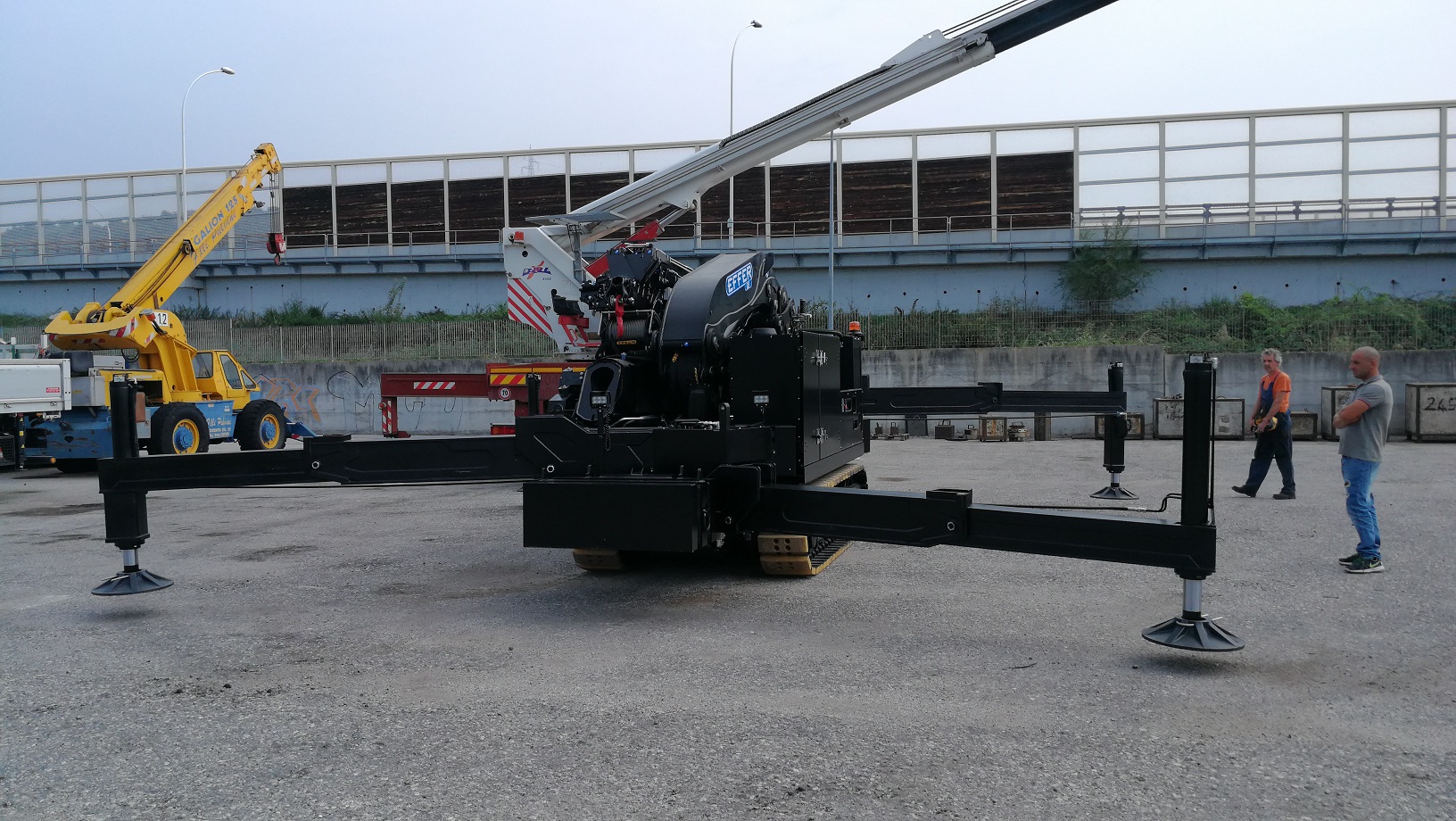

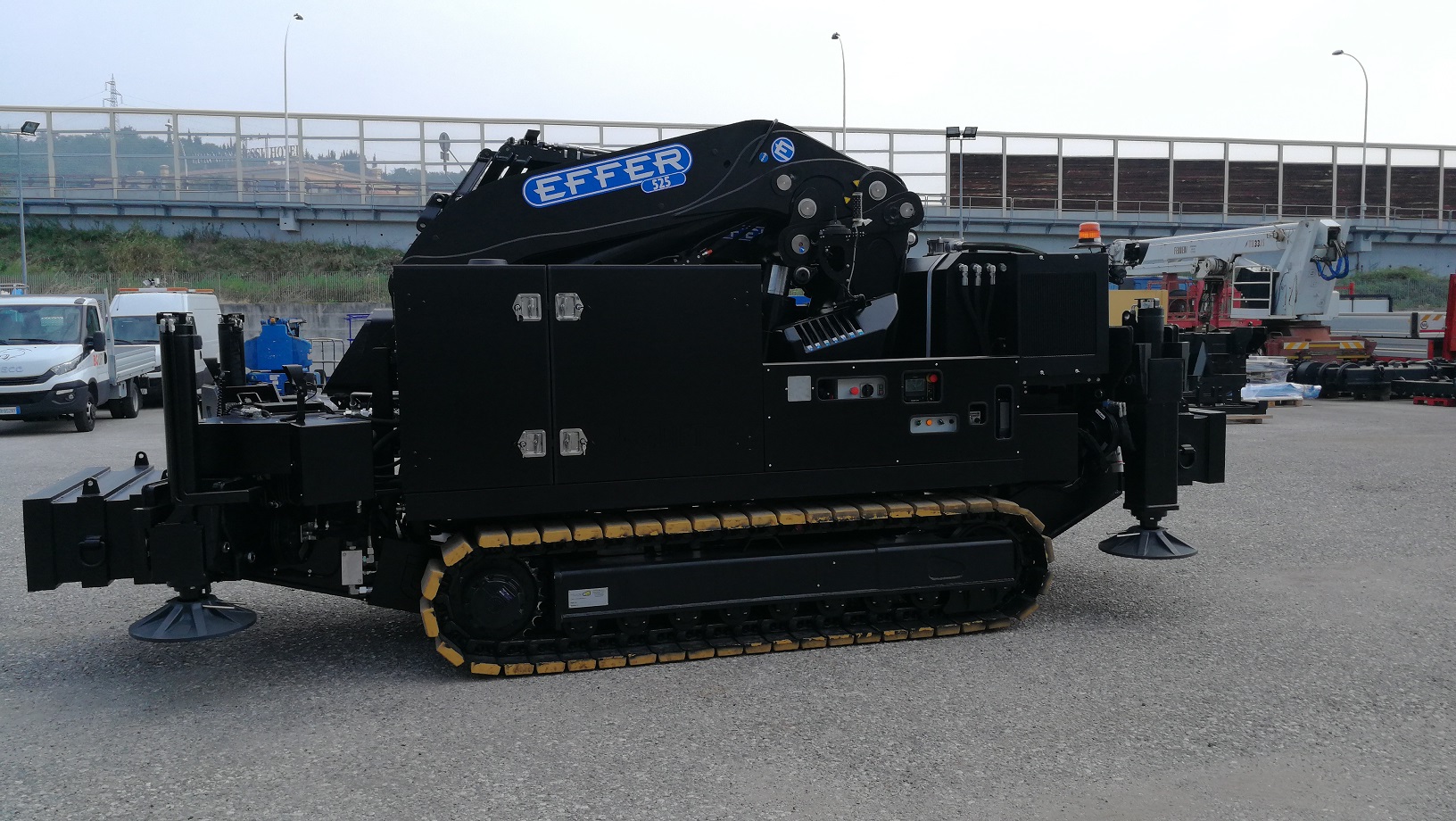

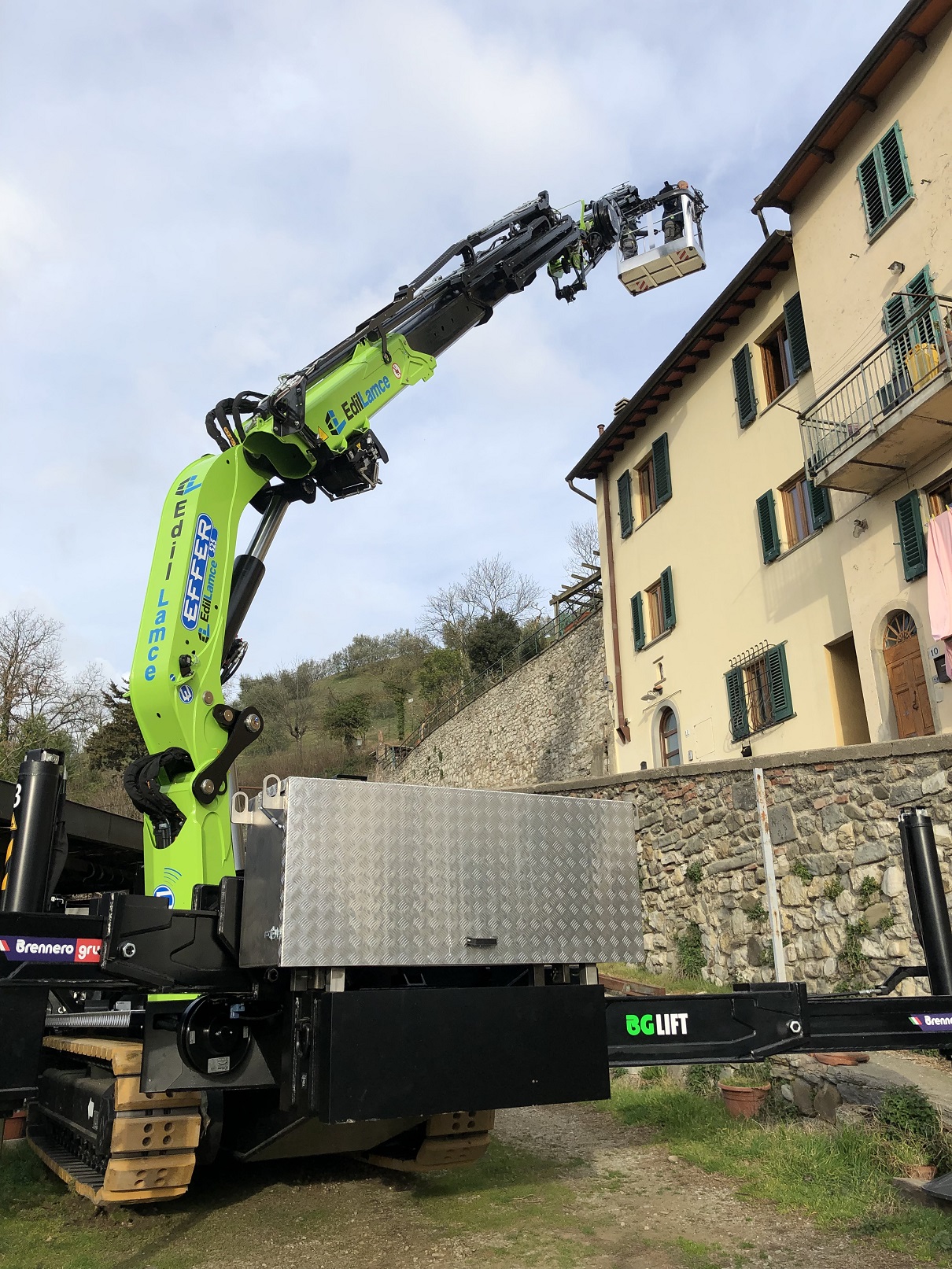

Lowered box-shaped chassis, outriggers crossbeam with double outriggers, tracks with steel mesh, drive motor with no. 2 speeds and negative brake, 55 Kw Diesel engine, No. 4 lifting attachments, No. 4 outrigger plates diameter 500 mm, Effer crane model 525.5S, No. 2 articulated booms with connecting rods and forks, No. 6 hydraulic extensions, Continuous rotation with slewing ring and gear motor, Radio remote control, RAL 1007 yellow paintwork for booms and crane column, black jacks, black paintwork for carriage, Removable ballast kg 2,000 x 2 .

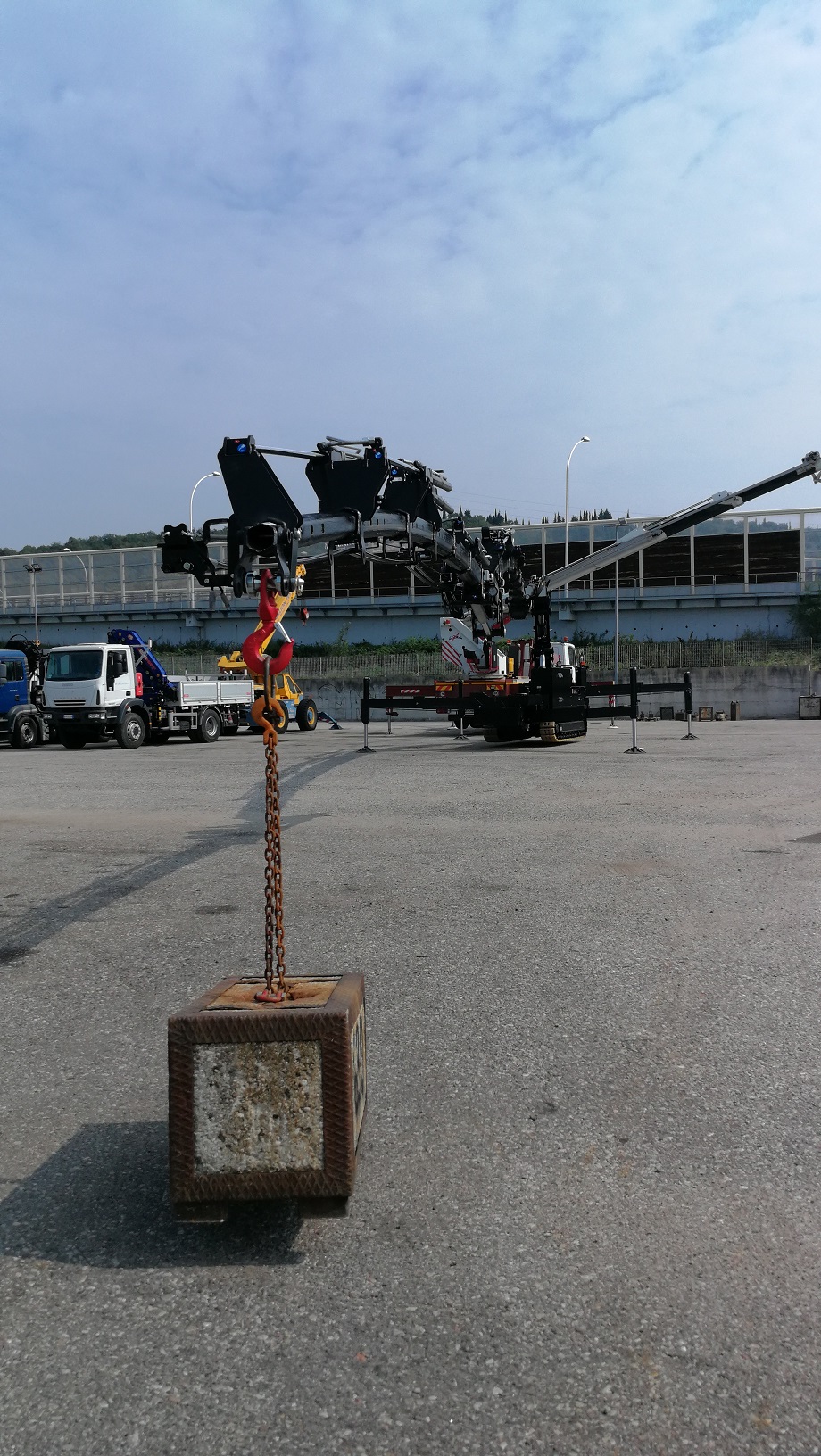

Three-phase electric motor 15 kw-400V-50 Hz with variable displacement pump, articulated Jib 4S with No. 4 hydraulic extensions complete with controls and hose ducts, FASTER quick coupler for crane-jib connection, winch 1900 kg direct pull with pulleys at the tip of the crane with control and overload control, pulleys for pull at the tip of the Jib (Wind And Drive).

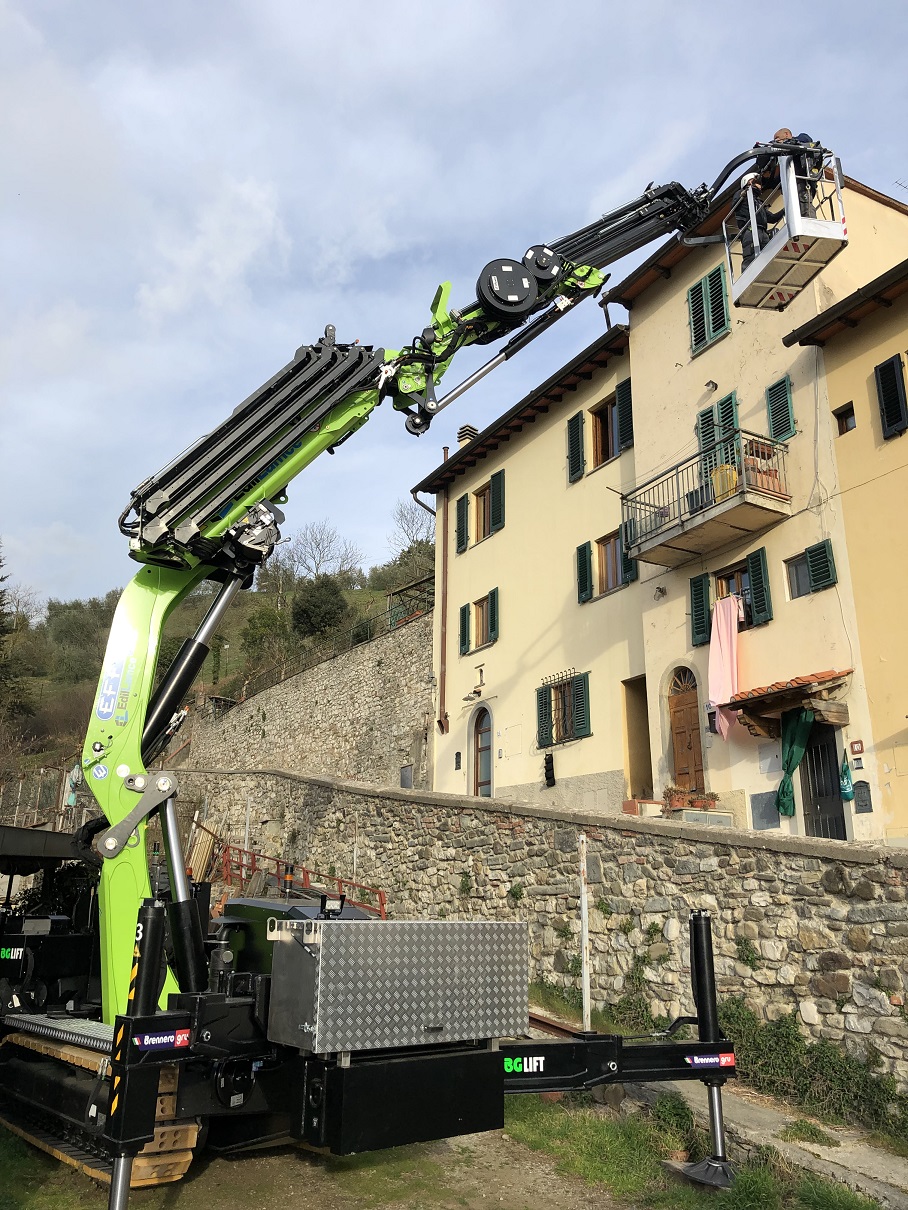

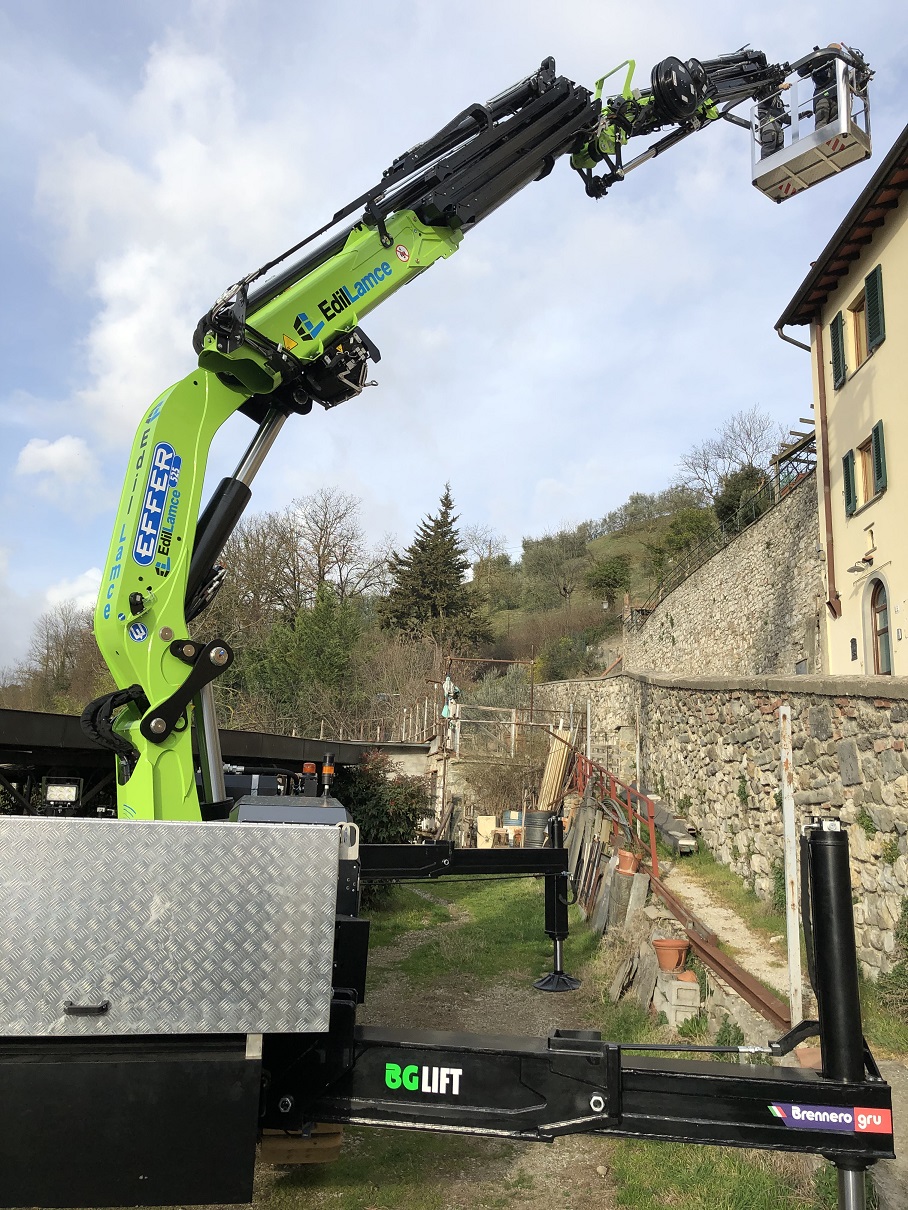

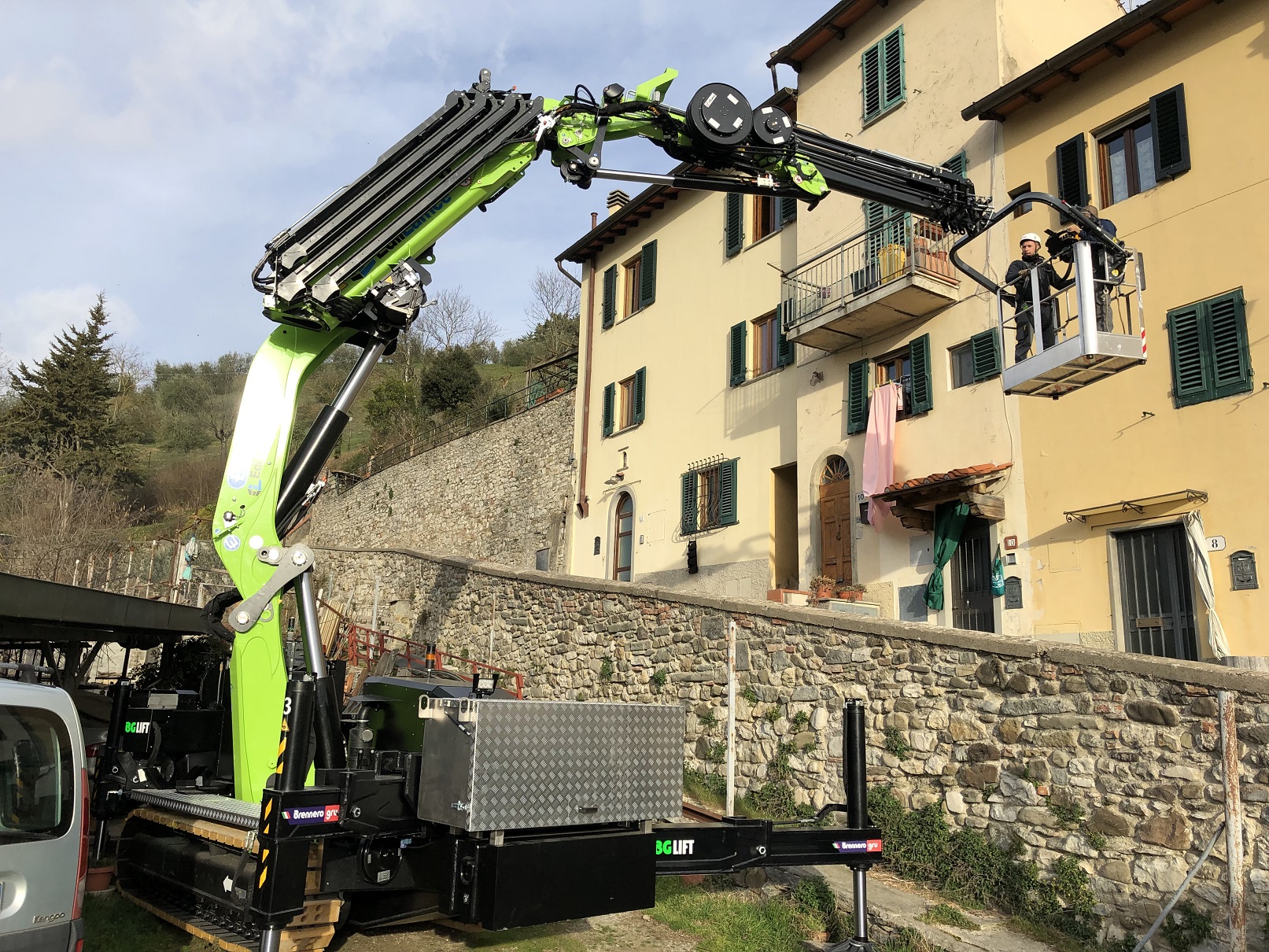

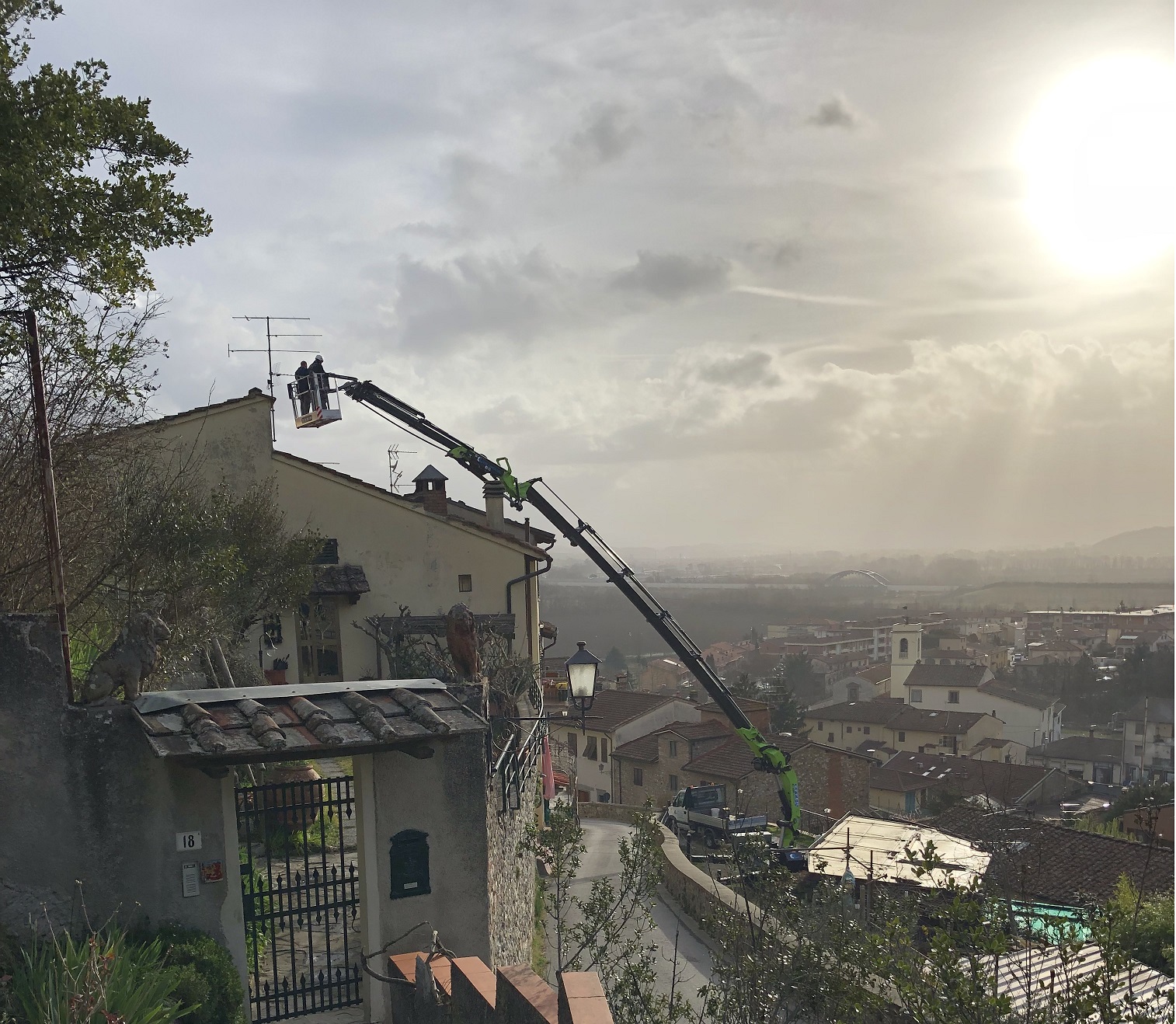

Two-seater operator basket with gravity leveling, manual rotation, safety devices CE approval for basket (EN 280) No. 2 controls at the tip of the 4s jib with solenoid valves and hose reel (not compatible with operator basket) Special shaped support for suction cup manipulator, max. load capacity 7000 kg. (not suitable for lifting with hook), Special shaped support for suction cup manipulator, max. load capacity 1500 kg (not suitable for lifting with hook) Steel track shoes covered in vulcanized non-marking rubber Steel track shoes covered in vulcanized non-marking rubber, N°4 led lights (2 front 2 rear) on the wagon, N°2 led lights on the crane, 6 mm thick stainless steel body with aluminum cover Dimensions 1500 x 400 x 600 mm, Extra charge for RT wagon: – Tracks with steel mesh, shoe width 450 mm, drive motor with nr. 2 speeds and negative brake. – Diesel engine 85 kw; adaptation of hydraulic and electric circuits. – Removable ballast weights Kg 1,000 x 2 (alternatively Kg 2,000 x 2), skids for oversize wagon in black vulcanized rubber, skids for oversize wagon in non-marking vulcanized rubber, painting of crane arms and column other than yellow 1007, in RAL color range., painting of wagon other than black, in RAL color range.
