Description

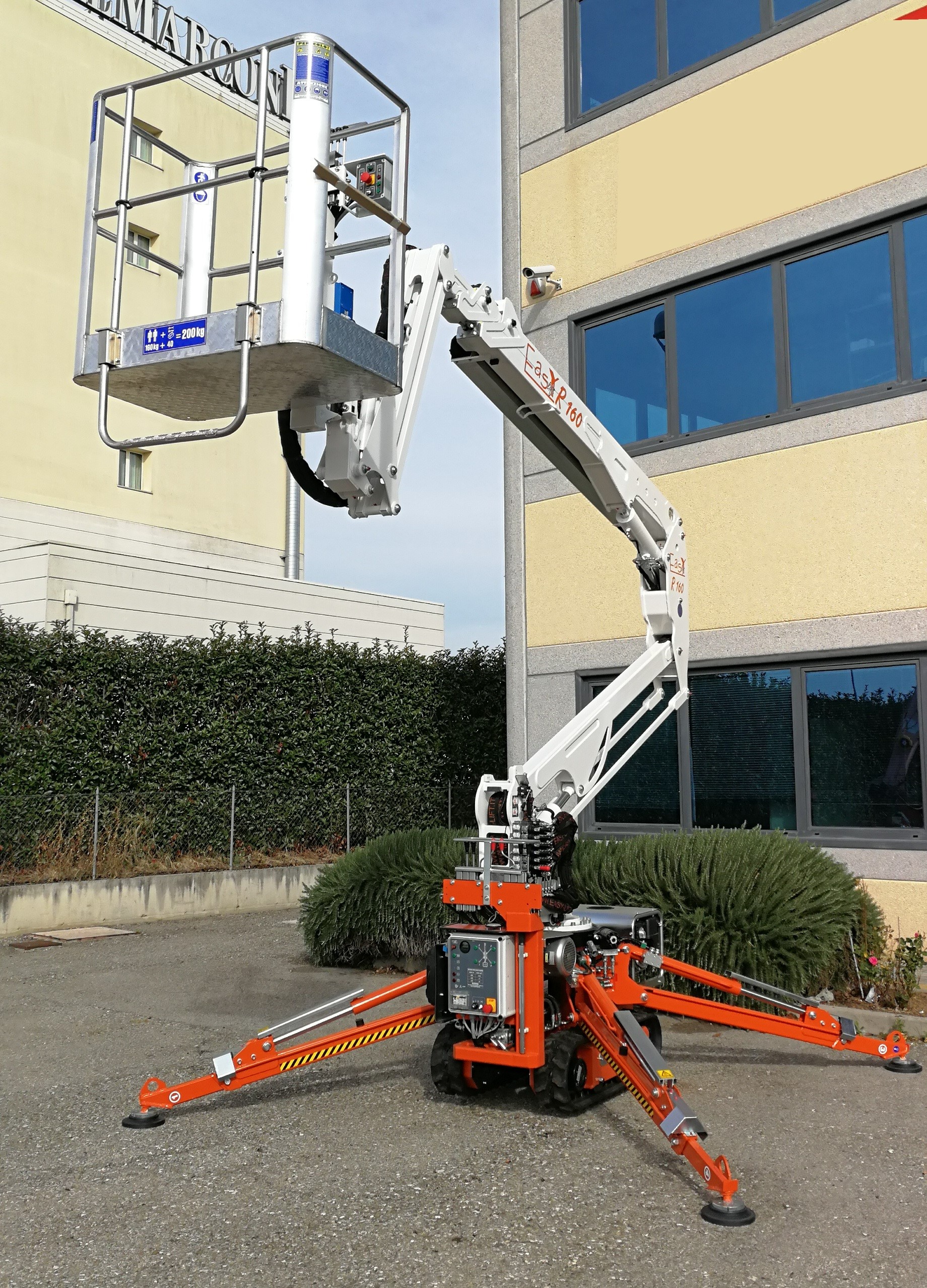

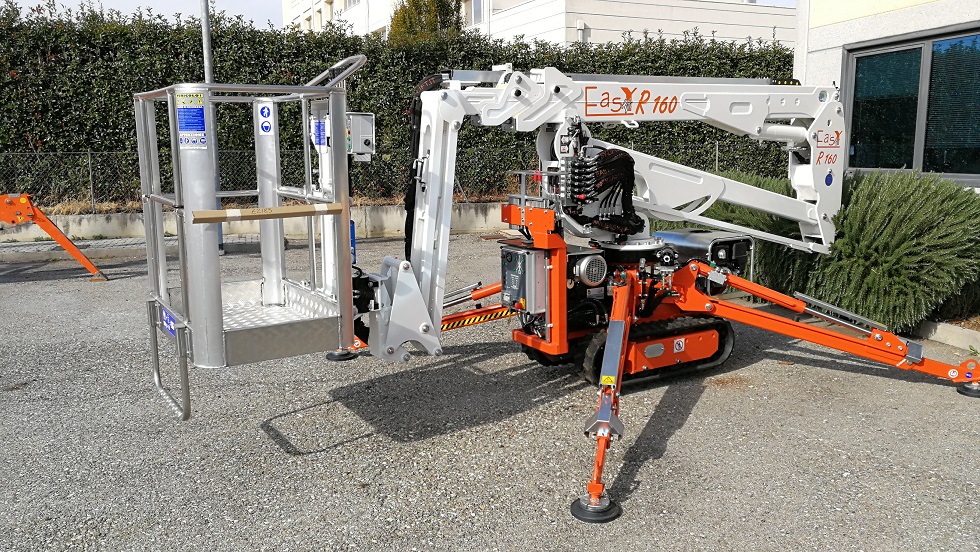

Self-propelled tracked aerial platform R160 EASY LIFT: Max. working height: 15.60 m, Max. working outreach (120 kg): 7.50 m, Turret rotation: 320°, Aluminium basket 1100x700x1100 h mm with capacity 200 Kg (2 operators), Petrol engine: Honda 9.6 kW, Gradable slope for travel: 30%, Platform total weight: 1950 kg. Overall dimensions of outriggers at ground level: 2800×2800 mm, Overall dimensions of machine at rest: length 4900 mm – width 890 mm – height 1950 mm, Hydraulic and proportional controls, Locking valves on cylinders, Acoustic signal during translation, Engine start/stop control from the basket, Hand pump for emergency descent, Safety belt hooks on the basket, Reach limiter, Rubber tracks, 220 V electric motor, Hour meter, Air/water outlet, 220 V electric outlet, Standard paintwork, CE certification, Owner’s manual.

AVAILABLE OPTIONALS

  • Hatz Diesel Engine 7.3 kW
  • Working beacon on the basket
  • Inclinometer with acoustic alarm
  • No. 4 stabilizer plates 400x300x20 mm
  • Radio control

WATCH THE VIDEOS

Brand

Easy Lift
